DLLA4NCS-UNV1-1R-SRG1-P-M2

Part Number: DLLA4NCS-UNV1-1R-SRG1-P-M2
DLLA4NCS-UNV1-1R-SRG1-P-M2
Manufacturer
Eaton
Part number
DLLA4NCS-UNV1-1R-SRG1-P-M2
Category

Product Information

Extended Description

DLLA4NCS-UNV1-1R-SRG1-P-M2 Eaton: Eaton Crouse-Hinds series Pauluhn DLLA linear LED, Cool white, 3/4" entries w/ 1/2" reducers, Painted gray, 4 ft, Clear glass, 8000 lm, 135 lm/W, Copper-free alum, Ceil/swiv mt, Narrow, >0.94 PF, ≥10kV surge, 120-277Vac, 127/250Vdc, 59W
Product Name

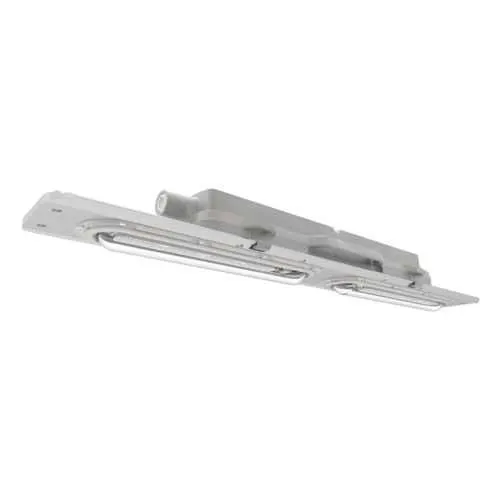

Eaton Crouse-Hinds series Pauluhn DLLA linear LED light fixture
Catalog Number
DLLA4NCS-UNV1-1R-SRG1-P-M2
UPC
786689810627
Product Length/Depth
39 in
Product Height
6.57 in
Product Width
7.13 in
Product Weight
23.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
8000
Lumens per watt
135
Optical distribution
Narrow
Mounting Method
Ceiling/swivel
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Entry size
3/4" with 1/2" reducers
Finish
Painted gray epoxy
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.94
Special features
120-277 VAC integrated ≥ 10kV surge protection module
