DLLAN2-UNV1-S903-M2

Part Number: DLLAN2-UNV1-S903-M2
DLLAN2-UNV1-S903-M2
Manufacturer
Eaton
Part number
DLLAN2-UNV1-S903-M2
Category

Product Information

Extended Description

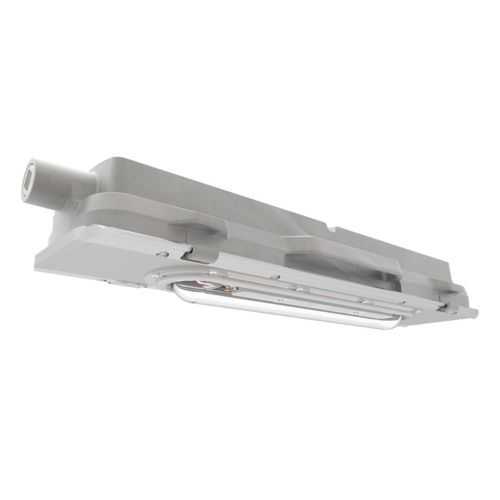

DLLAN2-UNV1-S903-M2 Eaton: Eaton Crouse-Hinds series Pauluhn DLLA linear LED fixture, Neutral white, 3/4" entries, Natural aluminum finish, 2 ft, Polycarbonate lens, 4000 lm, 132 lm/W, Copper-free alum, Flush ceiling mt, Wide, >0.92 PF, 120-277 Vac, 127/250 Vdc, 30W
Product Name
Eaton Crouse-Hinds series Pauluhn DLLA linear LED light fixture
Catalog Number
DLLAN2-UNV1-S903-M2
UPC
786689803988
Product Length/Depth
25.94 in
Product Height
4.42 in
Product Width
7.13 in
Product Weight
19.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class III Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Neutral white
Lamp length
2 ft
Lumens
4000
Lumens per watt
132
Optical distribution
Wide
Mounting Method
Flush ceiling
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
30W
Power factor
> 0.92
