E2LM3600WKA06

Part Number: E2LM3600WKA06
E2LM3600WKA06
Manufacturer
Eaton
Part number
E2LM3600WKA06
Category

Product Information

Extended Description

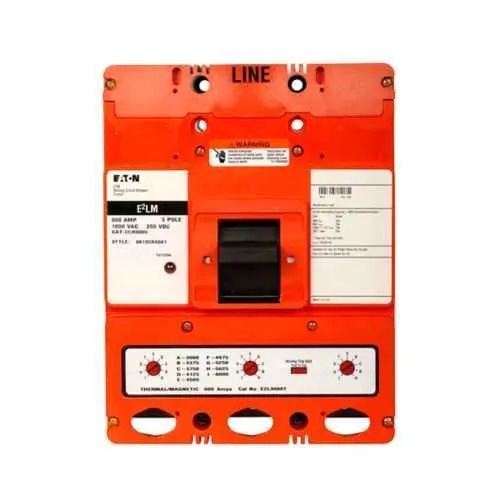

E2LM3600WKA06 Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Molded case switch, Interchangeable thermal-magnetic trip, 3000-6000A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, no term., Mining, 1A-1B rear w/ right pigtail
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3600WKA06
UPC
786685284743
Product Length/Depth
4.06 in
Product Height
10.75 in
Product Width
8.25 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T207
Circuit breaker type
E2LM
Circuit breaker frame type
Molded case switch
Auxiliary switch
1A-1B rear with right pigtail
Magnetic trip range
3000-6000A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
10 kAIC at 1000Y/577 Vac 100 kAIC at 240 Vac 65 kAIC at 480 Vac 35 kAIC at 600 Vac 42 kAIC at 250 Vdc
Number of poles
Three-pole
Trip rating
3000-6000 A
