EMR-4000-2A0HB0

Part Number: EMR-4000-2A0HB0
EMR-4000-2A0HB0
Manufacturer
Eaton
Part number
EMR-4000-2A0HB0
Category

Product Information

Extended Description

EMR-4000-2A0HB0 Eaton: Eaton, motor relay, 5A, 1A, Motor, over Ethernet RJ-45, over Ethernet RJ-45, Conformal Coated Circuit Boards, 19-300Vdc, 40-250Vac,Current Protection and Metering,Power Protection and Metering,
Product Name

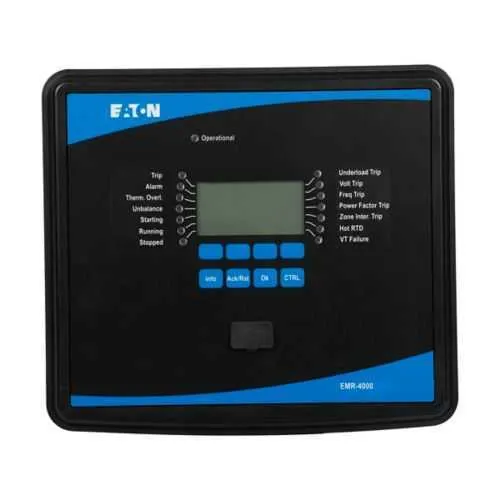

Eaton motor relay
Catalog Number
EMR-4000-2A0HB0
UPC
786679147665
Product Length/Depth
8.06 in
Product Height
8.7 in
Product Width
9.72 in
Product Weight
9.259 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Application
Motor
Type
Motor relay
Analog inputs
0
Phase current
5A, 1A
Analog outputs
4
Digital inputs
8
Digital outputs
5
I/O options
URTD Interface IRIG-B
IEC 61850
over Ethernet RJ-45
Modbus / DNP3 TCP
over Ethernet RJ-45
Sensing inputs
Current Protection and Metering Voltage Protection and Metering Power Protection and Metering
Zone selective interlocking
1
