JGS9080AAG
Part Number: JGS9080AAG
Product Information
Extended Description

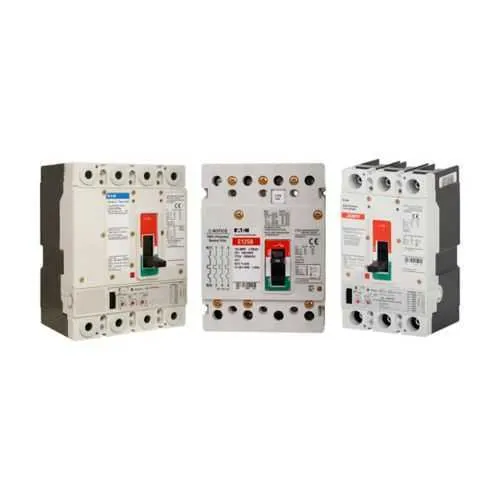

JGS9080AAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, adj. thermal, adj. magnetic trip, Four-pole, 80A, 600 Vac, 250 Vdc, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line/load, 50/60 Hz, 100% protected neutral pole
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGS9080AAG
UPC
782114889206
Product Length/Depth
3.44 in
Product Height
7 in
Product Width
5.34 in
Product Weight
8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Type
Complete breaker
Amperage Rating
80 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Protection
100% protected neutral pole
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50/60 Hz
Interrupt rating
85 kAIC at 240 Vac 18 kAIC at 600 Vac 35 kAIC at 480 Vac
Number of poles
Four-pole
