JMXFH1C04FSUDSV
Part Number: JMXFH1C04FSUDSV
Product Information
Extended Description

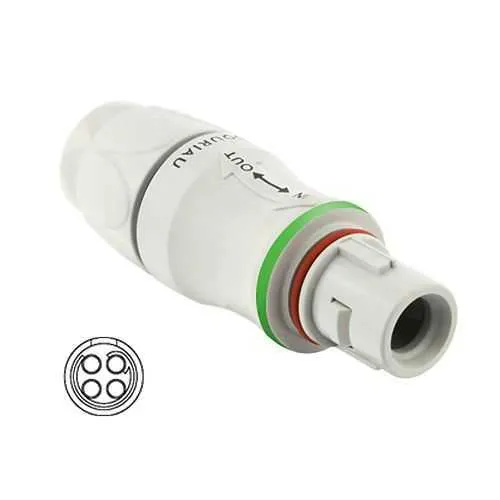

JMXFH1C04FSUDSV Eaton: Push-pull plastic IP68 plug, layout 1-04, female solder contacts, keying C, green color coding; JMXFH1C04FSUDSV
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1C04FSUDSV
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
8 A IEC 8 A UL
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
