KTS-R-10

Part Number: KTS-R-10
KTS-R-10
Manufacturer
Eaton
Part number
KTS-R-10
Category

Product Information

Extended Description

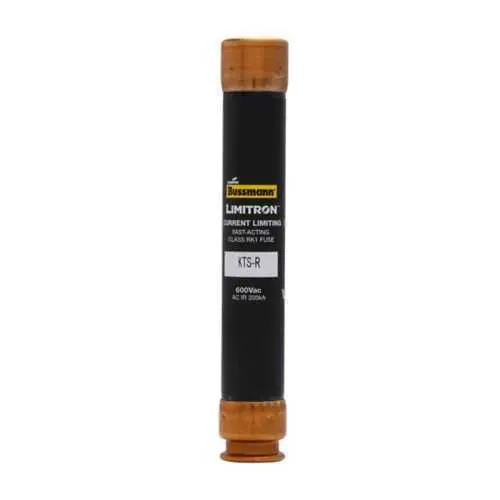

KTS-R-10 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 10 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-10
UPC
051712417037
EAN
5027590446303
Product Length/Depth
0.8 in
Product Height
5 in
Product Width
0.8 in
Product Weight
0.13 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
10 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
70/30 brass end cap
Bussmann Full Line Catalog Bussmann Full Line Catalog RoHS Search Tool Bussmann series Fuseology Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
