LPS-RK-300SP

Part Number: LPS-RK-300SP
LPS-RK-300SP
Manufacturer
Eaton
Part number
LPS-RK-300SP
Category

Product Information

Extended Description

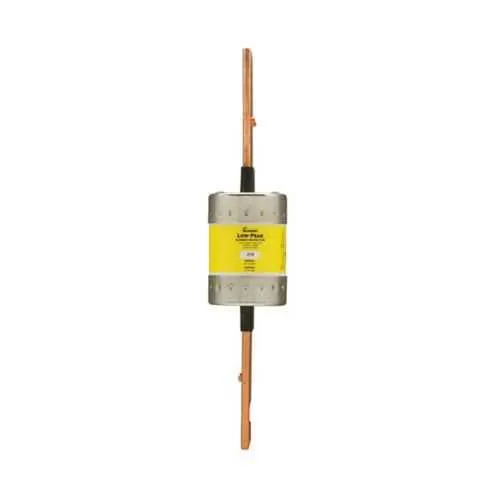

LPS-RK-300SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 300 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-300SP
UPC
051712548533
Product Length/Depth
11.63 in
Product Height
2.36 in
Product Width
2.36 in
Product Weight
4.6 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
300 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Electrically isolated end cap
Low Voltage Branch Circuit Fuse Chapter Low Voltage Branch Circuit Fuse Chapter RoHS Search Tool Bussmann series Fuseology Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, 70-600 A data sheet no. 1002
