OLI365FDJA-0000

Part Number: OLI365FDJA-0000
OLI365FDJA-0000
Manufacturer
Eaton
Part number
OLI365FDJA-0000
Category

Product Information

Extended Description

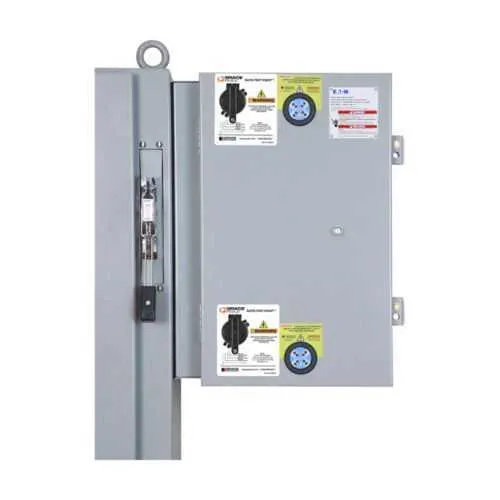

OLI365FDJA-0000 Eaton: Eaton OEM line isolation switch, 400 A, NEMA 12/3R, Galvanized steel, Class J fusible, Without neutral, Three-pole, Three-wire, 600 V, (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton oem line isolation switch
Catalog Number
OLI365FDJA-0000
UPC
786676034685
Product Length/Depth
50.15 in
Product Height
9.24 in
Product Width
21.3 in
Product Weight
100 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
OEM line isolation switch
Amperage Rating
400A
Fuse class provision
Class J fusible
Voltage rating
600 V
Eaton OEM Line Isolation Switch (OLI) Installation Video Eaton OEM Line Isolation Switch (OLI) Installation Video Eaton OEM Line Isolation Switch (OLI) Installation Video Eaton OEM Line Isolation Switch (OLI) Installation Video Eaton OEM Line Isolation Switch (OLI) Installation Video Eaton Specification Sheet - OLI365FDJA-0000
