P3BKDB3400NSP
Part Number: P3BKDB3400NSP
Product Information
Extended Description
P3BKDB3400NSP Eaton: E50 Heavy Duty Factory Sealed 6P+ Limit Switch, Wobble Stick, Die Cast Zinc enclosure, 10A max AC, 1A max DC, 2NO-2NC, 10A at 240Vac, 1A at 250Vdc, 8 Ft. ( 2.5m ) Cable, 8 Ft. ( 2.4m )
Product Name

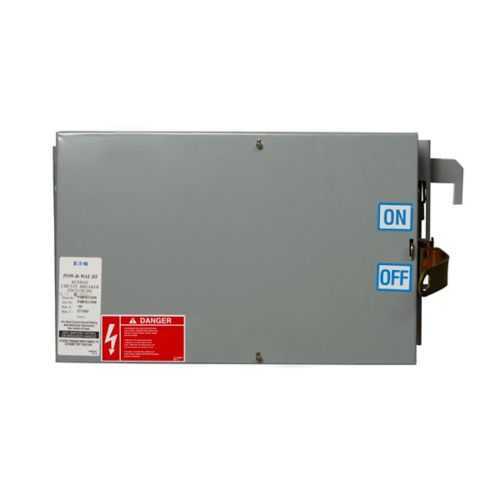

Eaton Pow-R-Way III circuit breaker plug-in unit
Catalog Number
P3BKDB3400NSP
UPC
786685220864
Product Length/Depth
13.29 in
Product Height
34.41 in
Product Width
7.79 in
Product Weight
53 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEMA Compliant
Certifications
CSA Certified ANSI IEEE Certified UL 857
Circuit Breaker Frame
K
Design
Pow-R-Way III
Grounding Options
50% Integral/Housing
Number Of Poles
Three-pole
Type
Breaker
Amperage Rating
400A
Interrupt rating
65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 25 kAIC at 600 Vac
Neutral Options
100%
Application
Busway
Product Category
Plug
Special features
Sprinkler-proof plug-in
