PV3M
Part Number: PV3M
Product Information
Extended Description

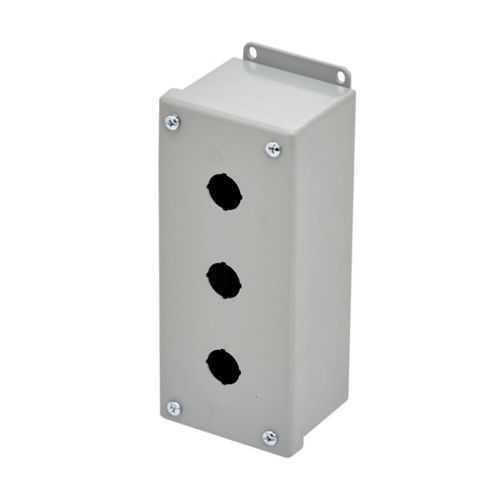

PV3M Eaton: Eaton B-Line series push button enclosures, 6.63" height, 3.89" length, 3.81" width, NEMA 12, Screw cover, PVM enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV3M
UPC
782051090178
Product Length/Depth
3.89 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
3.4 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PVM enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Special features
Removable cover, recessed pull ring, plated screws
NEMA Rating
12
Country of origin
US
