PVML-5-R1A-UNV1-M3

Part Number: PVML-5-R1A-UNV1-M3
PVML-5-R1A-UNV1-M3
Manufacturer
Eaton
Part number
PVML-5-R1A-UNV1-M3
Category

Product Information

Extended Description

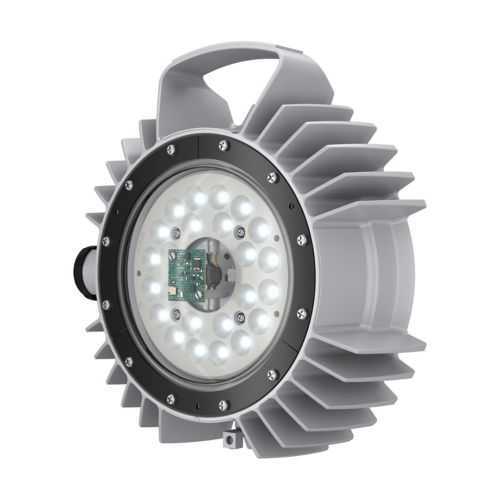

PVML-5-R1A-UNV1-M3 Eaton: Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, No mtg module, Type I optics, 100-277 Vac, 127-250 Vdc, 35W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture
Catalog Number
PVML-5-R1A-UNV1-M3
UPC
662277166577
Product Length/Depth
13 in
Product Height
8 in
Product Width
16 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
133
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type I
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
2 x 30W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ PVML LED Intelligent Lighting Crouse-Hinds series Champ PVML LED Intelligent Lighting - brochure Crouse-Hinds series Champ PVML LED Intelligent Lighting - brochure Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ PVML LED Intelligent lighting - catalog page Champ PVML LED Intelligent lighting Canadian certification Champ PVML LED Intelligent lighting Canadian certification Champ PVML LED Intelligent lighting Canadian certification Champ Intelligent Lighting FAQs Crouse-Hinds series Champ PVML LED Intelligent ies photometric files
