S12N12E25N
Part Number: S12N12E25N
Product Information
Extended Description

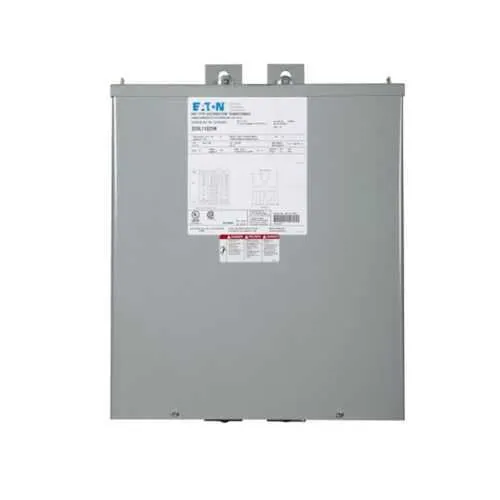

S12N12E25N Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 182, 60 Hz, single-phase, 120 V, 120 V, NONE, 115 °C rise, 25 KVA, indoor-outdoor, 77A
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S12N12E25N
UPC
786680108112
Product Length/Depth
14.12 in
Product Height
23.31 in
Product Width
16.35 in
Product Weight
380 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
182
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
77A
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
120 V
Secondary Voltage
120 V
Temperature rise
115 °C rise
Volt ampere rating
25 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
