SM14ML1S31
Part Number: SM14ML1S31
Product Information
Extended Description

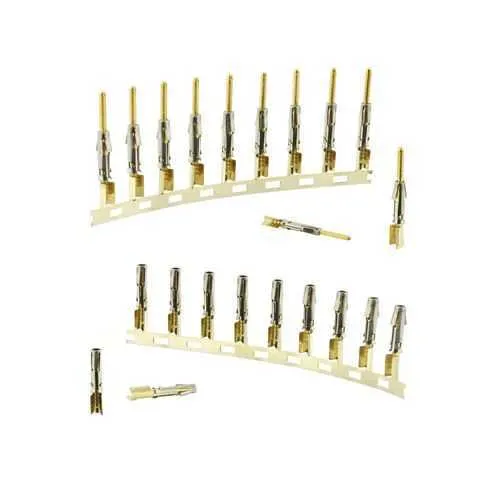

SM14ML1S31 Eaton: Male stamped and formed crimp contact, size #16, delivered loose, Gold and Nickel plating; SM14ML1S31
Product Name
Eaton Souriau SC / SM series #16 (1.6mm) and #20 (1.0mm) stamped and formed contacts
Catalog Number
SM14ML1S31
Product Length/Depth
28 mm
Product Height
2.4 mm
Product Width
2.9 mm
Product Diameter
2.4 mm
Product Weight
0.4 g
Environmental conditions
RoHS REACH
Contact gender
Pin (Male)
Contact plating
Gold on active part, Nickel on rear part
Contact size
16 AWG
Contact type
Crimp
Packaging type
Bulk
Wire size (AWG) - max
14 AWG
Wire size (AWG) - min
14 AWG
Manufacturing process
Stamped and formed
