SM16M1S18
Part Number: SM16M1S18
Product Information
Extended Description

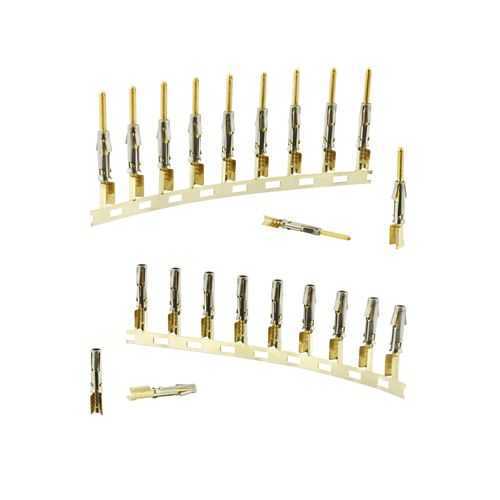

SM16M1S18 Eaton: Male stamped and formed crimp contact, size #16, on a reel, Gold and Tin plating; SM16M1S18
Product Name
Eaton Souriau SC / SM series #16 (1.6mm) and #20 (1.0mm) stamped and formed contacts
Catalog Number
SM16M1S18
Product Length/Depth
28 mm
Product Height
3.2 mm
Product Width
3.7 mm
Product Diameter
3.2 mm
Product Weight
0.4 g
Environmental conditions
REACH RoHS
Contact gender
Pin (Male)
Contact plating
Gold on active part, Tin on rear part
Contact size
16 AWG
Contact type
Crimp
Packaging type
Reeled
Wire size (AWG) - max
16 AWG
Wire size (AWG) - min
18 AWG
Manufacturing process
Stamped and formed
