Amtecs 0.18kW (0.25HP) Single Phase Motor, 2-Pole (3000 rpm) 63 Frame B3 - Foot IE2 0.18kW 3000RPM 63 Frame 240V Single Phase
Let's get you talking to a Human!
Need to speak with someone? We'll call you back within 2 hours during business hours
Chat with us on WhatsApp - fast responses guaranteed
Mounting Options
Downloads
Key Specification
FREE NEXT DAY DELIVERY
UK Mainland
Monday-Friday, Exclusions apply
12 Months Warranty
Free Next Day Delivery to UK Mainland
30-Day Easy Returns*
100% Secure payments
Shipping Worldwide
(Calculated in Checkout)
About this Product
The AMTECS 0.18kW (0.25HP) Single Phase Motor is designed for reliability in demanding workshop and light industrial applications. This 2-Pole (3000 rpm) motor operates on a standard UK 240V single-phase supply and features a robust 63 frame with B3 - Foot mounting. As an IE2 efficiency rated motor, it provides significant energy savings over older IE1 models.
Key features include a built-in thermal reset switch for overload protection, a durable metal terminal box, and a versatile multi-mount design. Ideal for powering extraction fans, pumps, and blowers, this permanent capacitor motor delivers smooth, efficient operation for continuous duty applications. Supplied with a 12-month warranty and available for free next-day UK delivery.
IE2 Efficiency
Exceeds IE1 efficiency standards for lower energy consumption, reduced running costs and a smaller carbon foot print.
Built-in Thermal Overload Protection
Automatic thermal reset switch prevents motor burnout from overload, increasing the lifespan and reliability of the motor
Multi-Mount Design
Removable feet allows the terminal box to be mounted on the top, left or right for installation flexibility.
Durable Metal Terminal Box
Impact protection and secure capacitor and cable gland entry compared to brittle plastic boxes, ensuring safety in industrial environments.

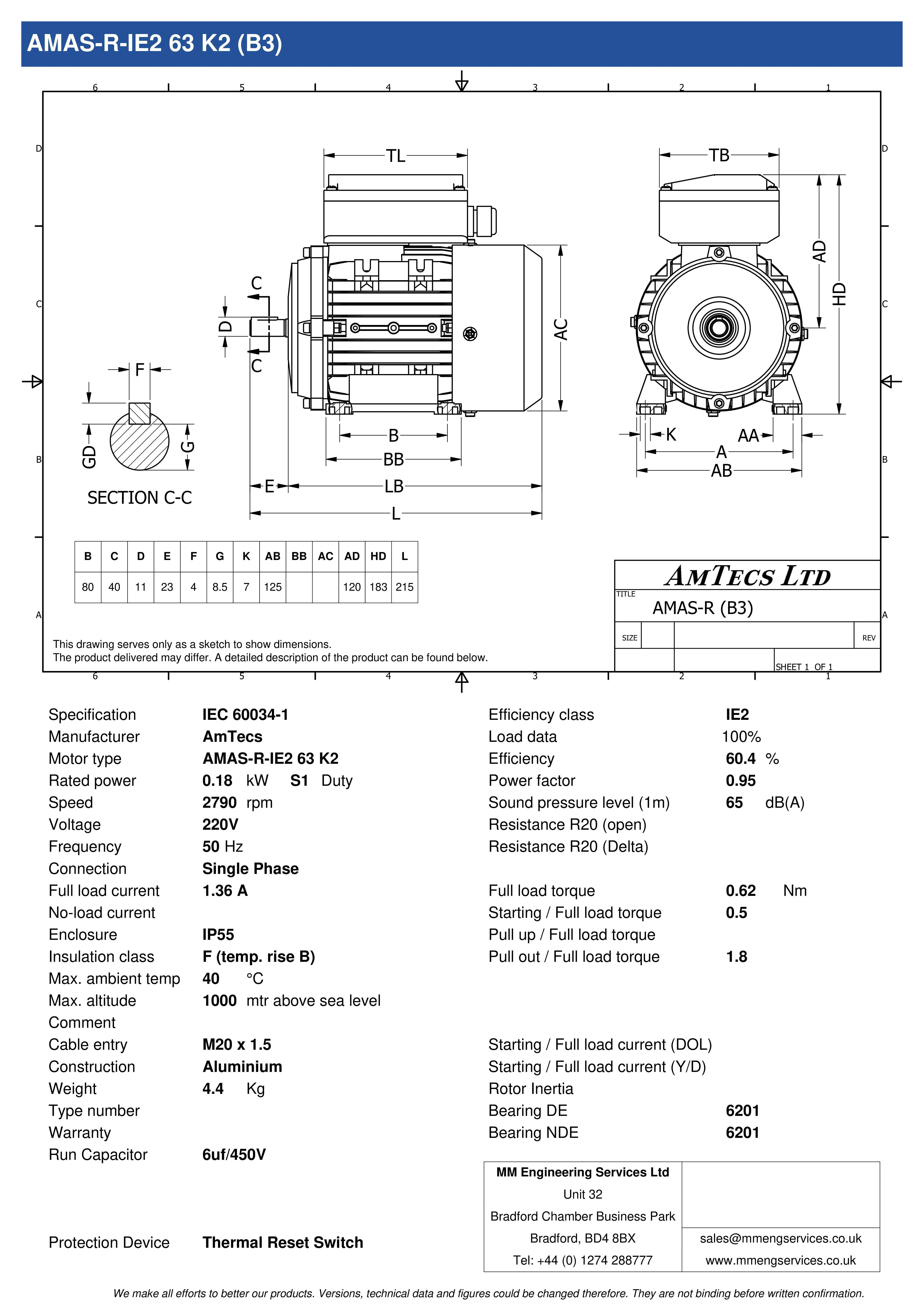

Technical Specification
Downloads
Packaging Dimensions
- Weight: 5KG
- Length: 26CM
- Width: 20CM
- Height: 22CM
Single Phase Motor FAQs
Yes, single-phase motors can be reversed by re-arranging connections to their terminals. The motor links can be moved to the alternative position, or the start winding connections can be reversed to change the rotation direction. Please see wiring diagram above for assistance or contact us.
Electric motors are normally supplied from the factory wired for clockwise rotation when looking at the drive shaft end. This is the standard factory configuration for most single-phase and three-phase motors.
For single-phase motors that need to operate in both forward and reverse directions, we recommend using a reversing contactor system. This setup includes interlocked contactors that prevent simultaneous operation in both directions, limit switches to control travel boundaries, and safety features like emergency stop buttons. This configuration is commonly used on car lifts where controlled bidirectional movement is essential for safe operation.
All our single phase motors come with a 12 month warranty. Returns are accepted within a 30 day period as long as the motor is new, unused with all its original packaging.
This motor is suitable to be used on a standard 240V supply. However, we can usually offer a 110V version on request. 110V motors are commonly used in workshops and construction sites where 110V is is mandatory to comply with Health & Safety requirements. Please contact our technical team by email (sales@mmengservices.co.uk), WhatsApp or call 01274 288777 to discuss availability.
A 2-Pole motor runs at approx. 3000rpm, whereas, a 4-Pole electric motor runs at approx. 1500rpm
