1182096
Part Number: 1182096
Product Information
Extended Description

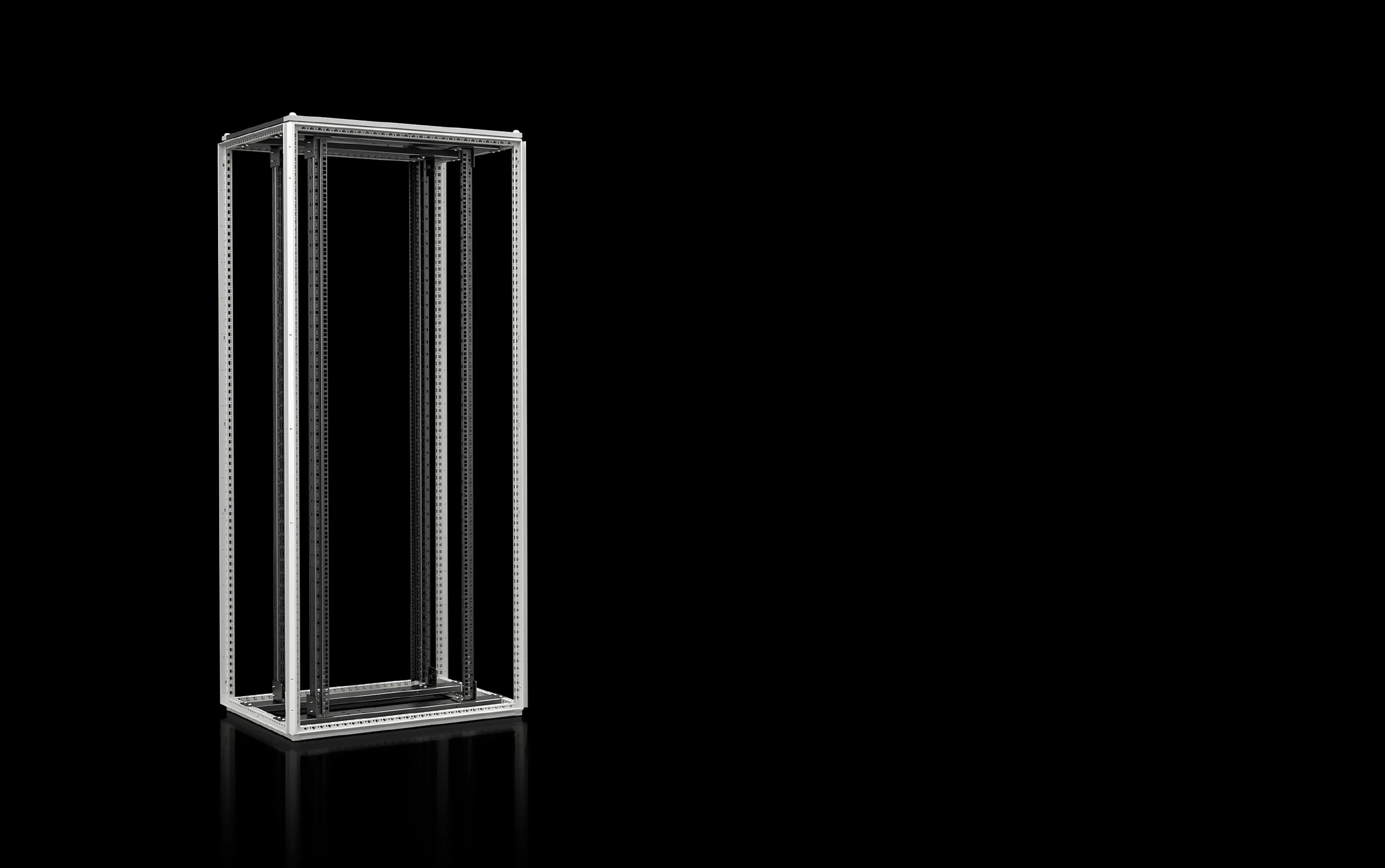

1182096 Rittal: VX IT Open, 482.6 mm (19") mounting angles screw-fastened to depth cross-member at the top and bottom, WHD: 800x2000x1000 mm, RAL 7035
Article number
VX_IT 1182.096
Design
VX enclosure frame with roof plate | without front and rear door | Vented | without side panels
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished
General colour
RAL 7035
Colour
Enclosure frame and roof: RAL 7035 | Interior installation: RAL 9005
Supply includes
Enclosure frame | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177973305
ETIM 9
EC002499
ETIM 8
EC002499
Product description
VX IT Open, 482.6 mm (19") mounting angles screw-fastened to depth cross-member at the top and bottom, WHD: 800x2000x1000 mm, RAL 7035
