1302600
Part Number: 1302600
Product Information
Extended Description

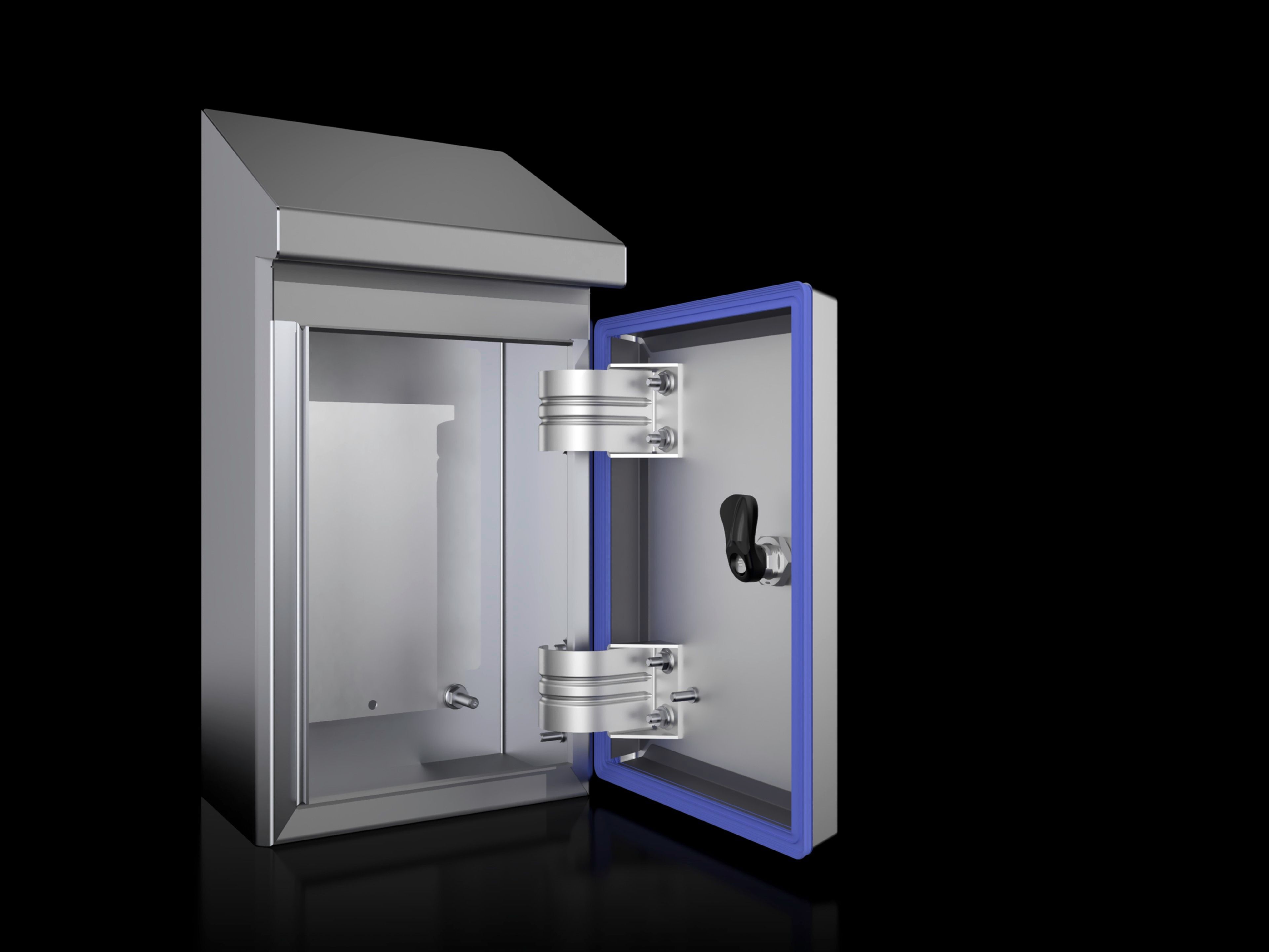

1302600 Rittal: HD Compact enclosure, WHD: 220x350(H1)x437(H2)x155 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
Article number
HD 1302.600
Design
Hygienic Design enclosure
Product modification
From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate.
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Mounting plate: Sheet steel | Lock insert HD: Stainless steel 1.4404 (AISI 316L) | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Door with inserted seal | Door hinged on the right, may be swapped to the left | Mounting plate
Dimensions
Width:Â 220 mm | Height, front:Â 350 mm | Height rear:Â 437 mm | Depth:Â 155 mm
Dimensions mounting plate (W x H)
160 mm x 275 mm
Door opening angle
125°
Number of locks
1
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISIÂ 304)
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
6.56 kg
Customs tariff number
94032080
EAN
4028177567597
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
HD Compact enclosure, WHD: 220x350(H1)x437(H2)x155 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
