1318600
Part Number: 1318600
Product Information
Extended Description

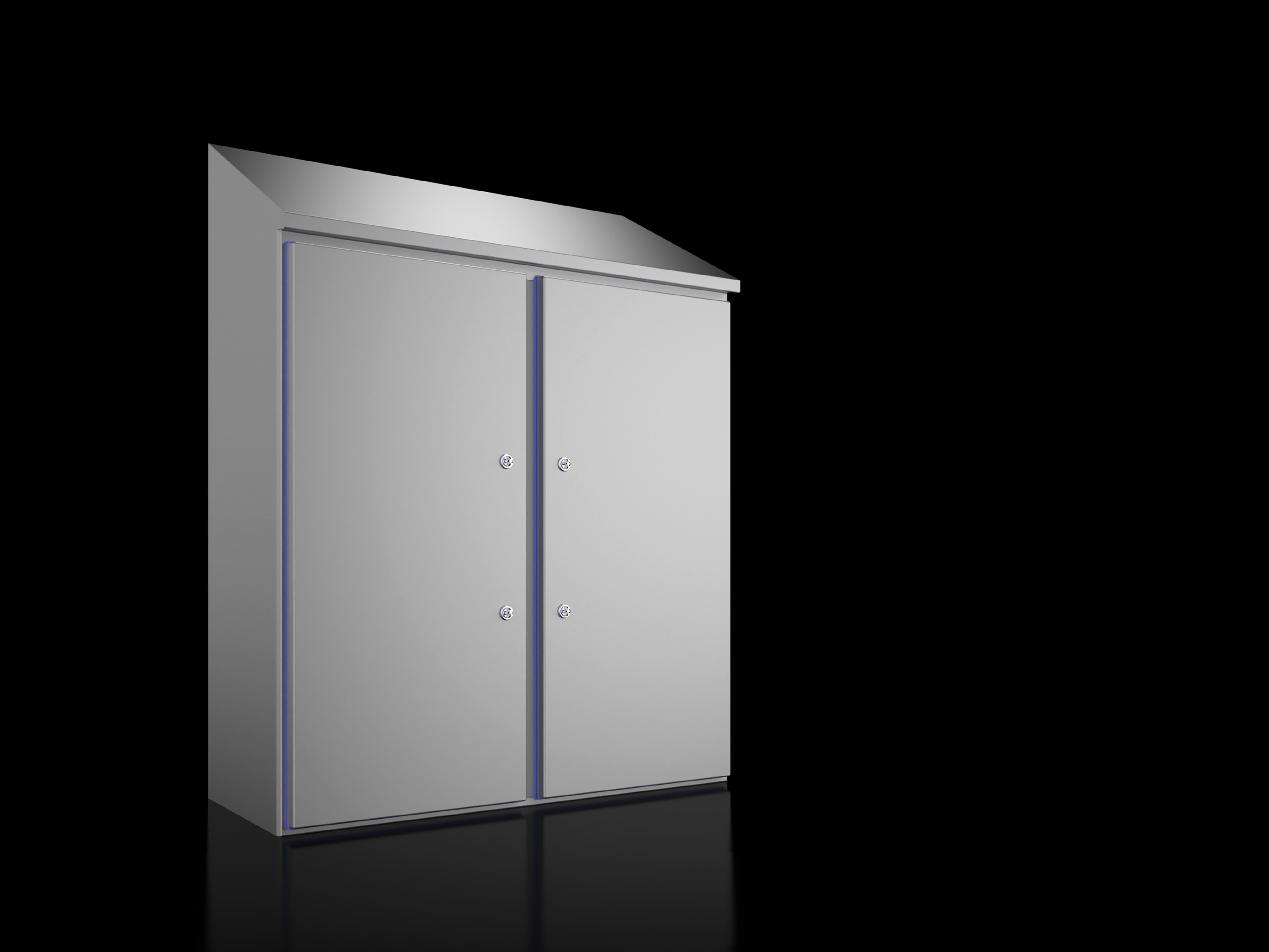

1318600 Rittal: HD Compact enclosure, WHD 1010x1050(D1)x1280(D2)x400 mm, stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
Article number
HD 1318.600
Design
Hygienic Design enclosure
Material
Enclosure and doors: Stainless steel 1.4301 (AISI 304) | Mounting plate: Sheet steel | Lock insert HD: Stainless steel 1.4404 (AISI 316L) | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Door with inserted seal | Mounting plate
Dimensions
Width:Â 1,010 mm | Height, front:Â 1,050 mm | Height rear:Â 1,280 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
945 mm x 975 mm
Door opening angle
125°
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISIÂ 304)
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
82 kg
Customs tariff number
94032080
EAN
4028177918535
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
HD Compact enclosure, WHD 1010x1050(D1)x1280(D2)x400 mm, stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
