1320600
Part Number: 1320600
Product Information
Extended Description

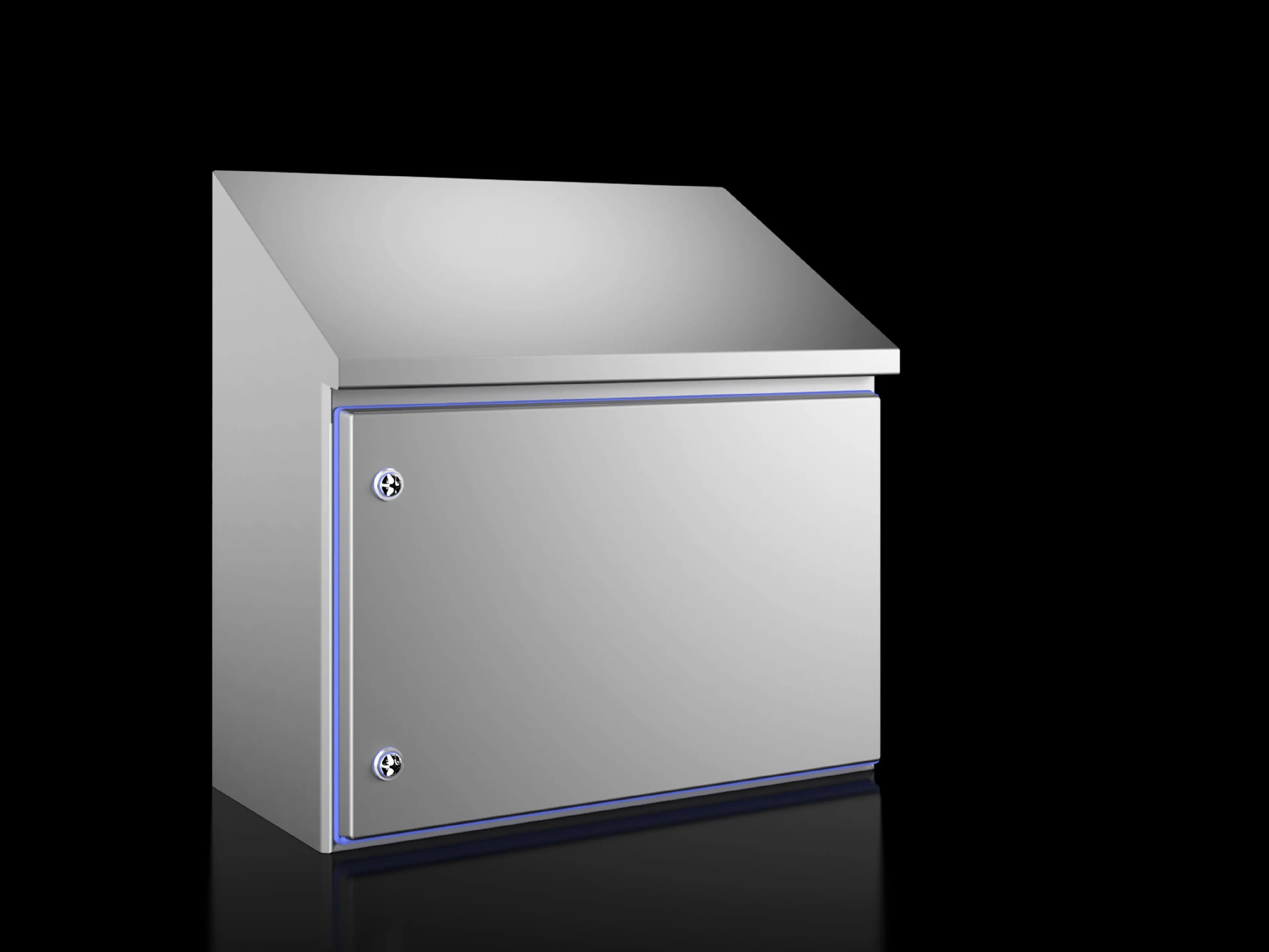

1320600 Rittal: HD Compact enclosure, WHD: 610x430(H1)x601(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
Article number
HD 1320.600
Design
Hygienic Design enclosure
Product modification
From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate.
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Mounting plate: Sheet steel | Lock insert HD: Stainless steel 1.4404 (AISI 316L) | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Door with inserted seal | Door hinged on the right, may be swapped to the left | Mounting plate
Dimensions
Width:Â 610 mm | Height, front:Â 430 mm | Height rear:Â 601 mm | Depth:Â 300 mm
Dimensions mounting plate (W x H)
550 mm x 355 mm
Door opening angle
125°
Number of locks
2
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISIÂ 304)
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
23 kg
Customs tariff number
94032080
EAN
4028177567665
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
HD Compact enclosure, WHD: 610x430(H1)x601(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
