1529000
Part Number: 1529000
Manufacturer
Rittal
Part number
1529000
Alt Part Number
KX 1529.000
Product Information
Extended Description

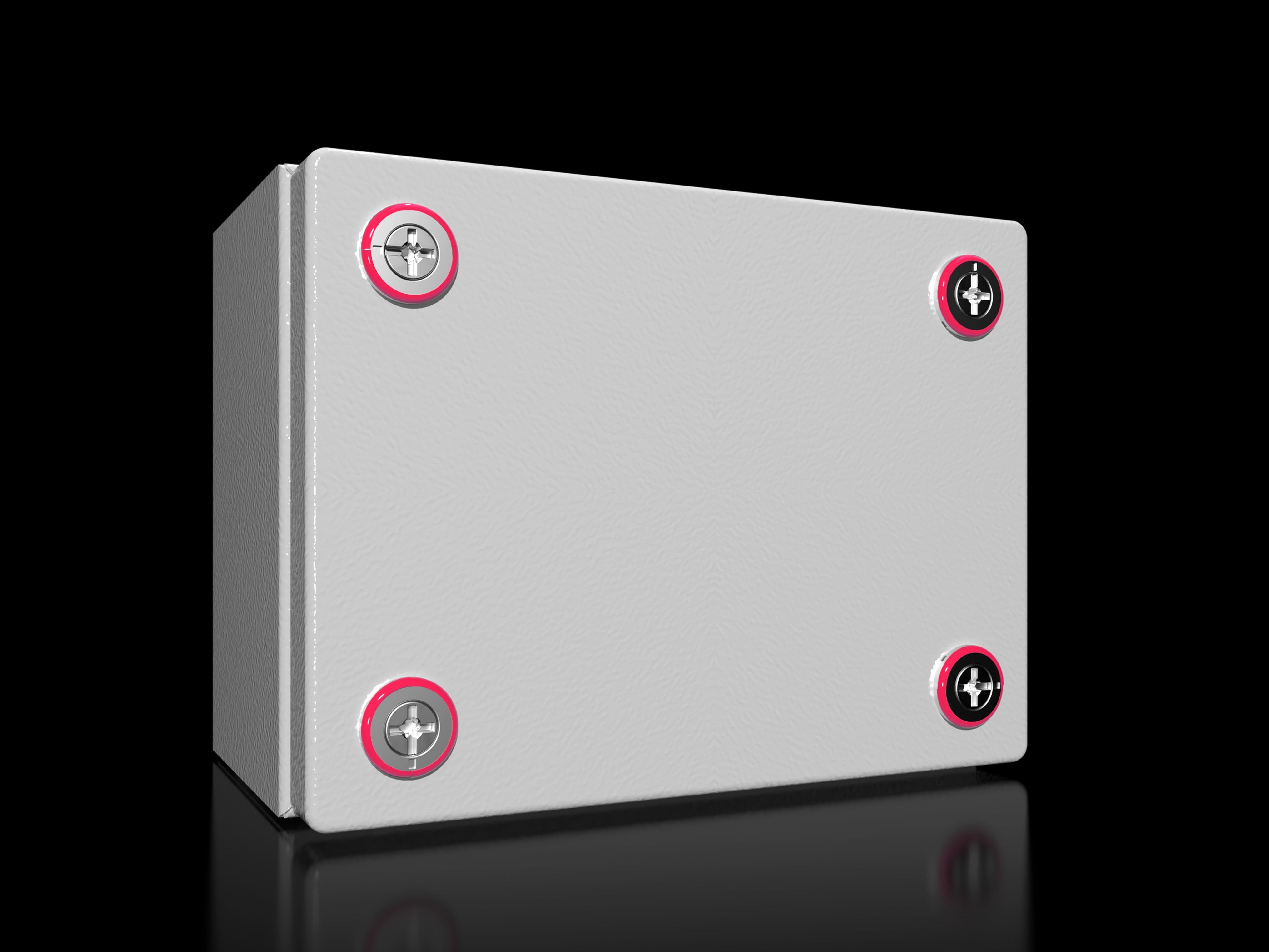

1529000 Rittal: KX Terminal box, WHD: 200x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate
Article number
KX 1529.000
Product description
The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Material
Enclosure: Sheet steel | Cover: Sheet steel, all-round foamed-in PU seal
Surface finish
Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure with cover | Mini cam lock
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 66
Type rating to UL 50E
Type 1
IK Code
IK08
Dimensions
Width:Â 200 mm | Height:Â 150 mm | Depth:Â 120 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
1.75 kg
PCF per pack (cradle-to-gate)
9.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
84879090
EAN
4028177816350
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX Terminal box, WHD: 200x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate
