1546000
Part Number: 1546000
Manufacturer
Rittal
Part number
1546000
Alt Part Number
KX 1546.000
Product Information
Extended Description

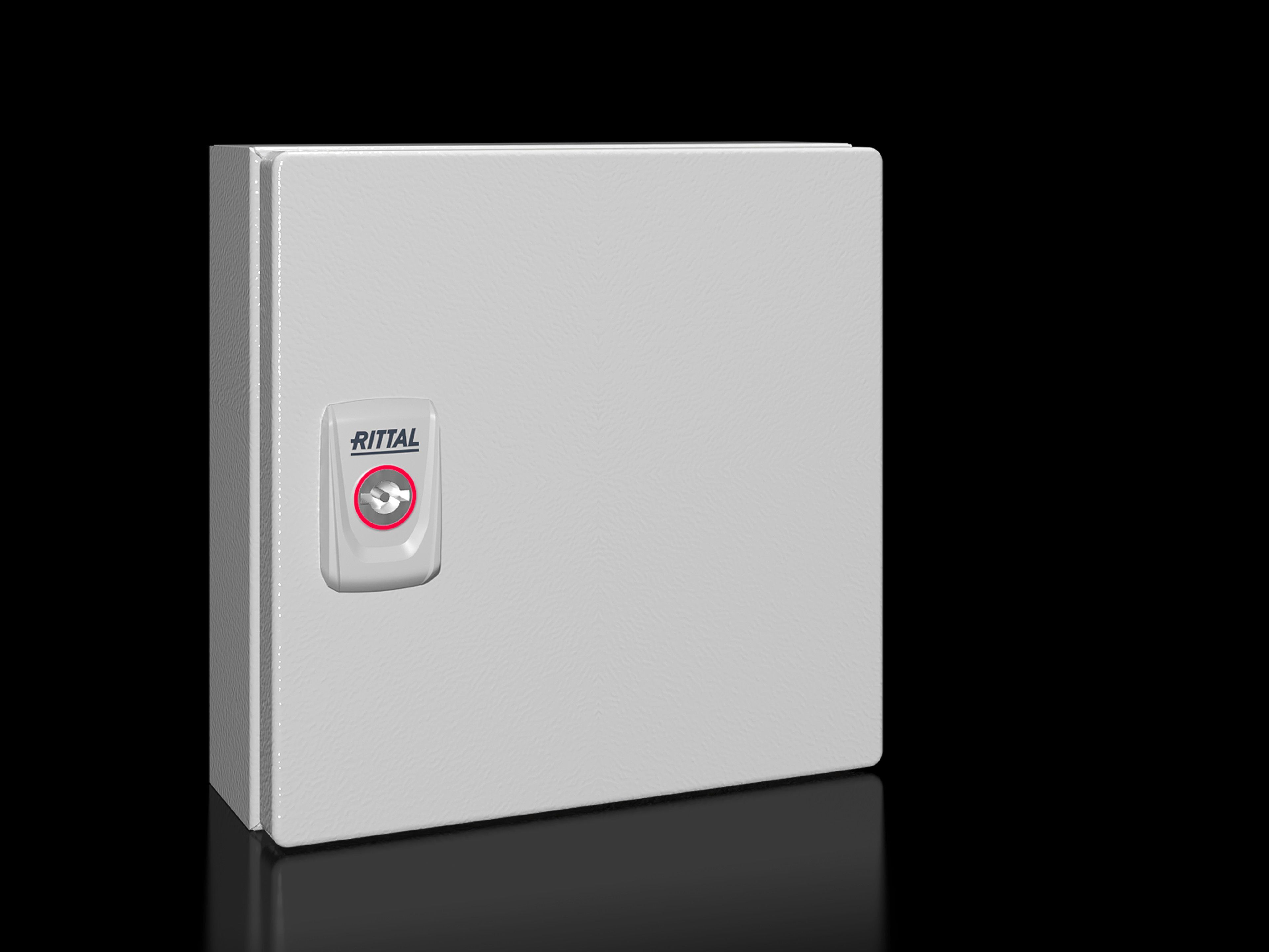

1546000 Rittal: KX E-Box, WHD: 200x200x80 mm, sheet steel, with mounting plate, with door
Article number
KX 1546.000
Product description
The small enclosure KX, E-Box KX (sheet steel), offers remarkable ease of assembly and flexibility when selecting lock systems.
Material
Enclosure: Sheet steel | Door: Sheet steel, all-round foamed-in PU seal
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure with door | Mounting plate | Cam lock with 3 mm double-bit insert | 180° hinge
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 66
Type rating to UL 50E
Type 1
IK Code
IK08
Dimensions
Width:Â 200 mm | Height:Â 200 mm | Depth:Â 80 mm
Dimensions mounting plate (W x H)
175 mm x 185 mm
Material thickness - enclosure
1.25 mm
Material thickness - door
1.25 mm
Material thickness of mounting plate
2 mm
Lock
Number of locks:Â 1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
2.25 kg
PCF per pack (cradle-to-gate)
8.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177816480
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX E-Box, WHD: 200x200x80 mm, sheet steel, with mounting plate, with door
