1558010

Part Number: 1558010
1558010
Manufacturer
Rittal
Part number
1558010
Category
Alt Part Number
BG 1558.010

Product Information

Extended Description

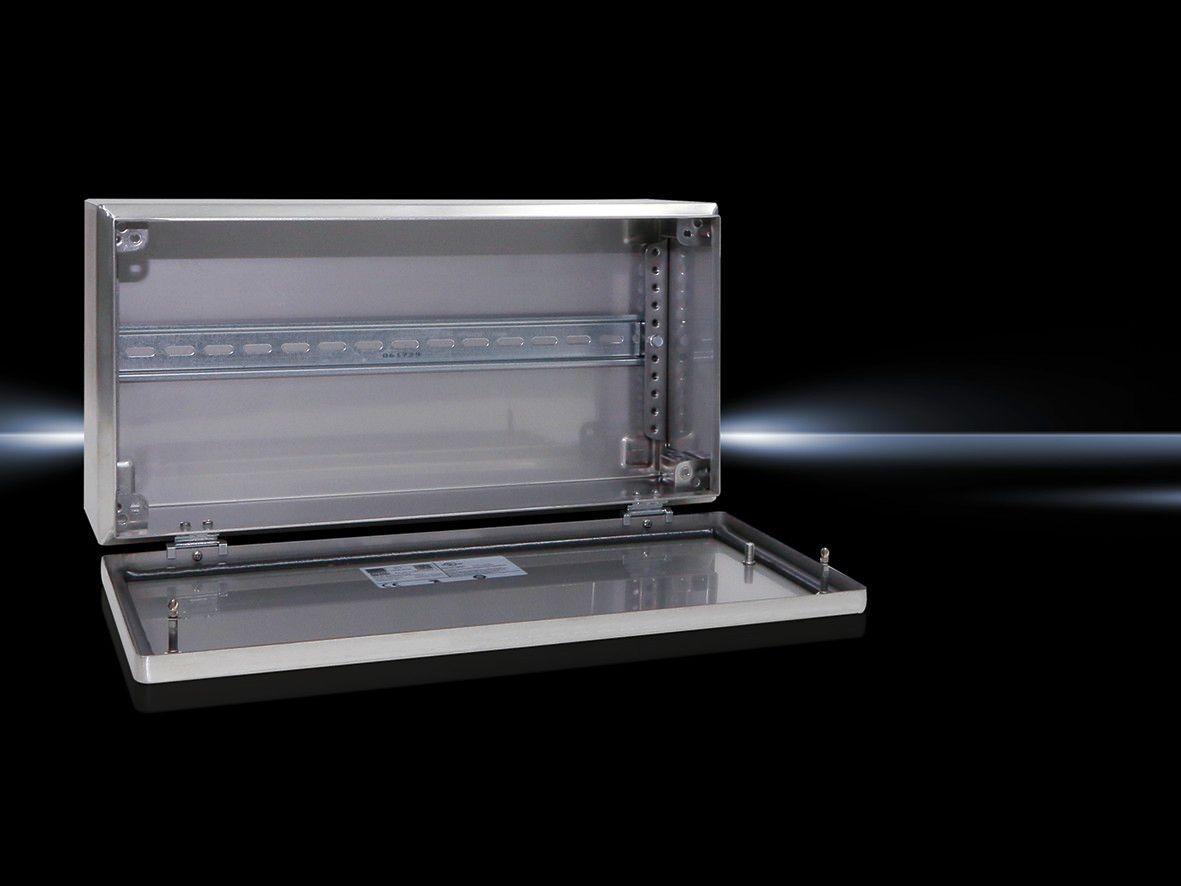

1558010 Rittal: BG Bus enclosure, WHD: 400x200x123 mm, Stainless steel 1.4301, without mounting plate, with cover, with support rail
Article number
BG 1558.010
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal | 180° hinges: Die-cast zinc
Surface finish
Enclosure and cover: Brushed, grain 240 | 180° hinges: chrome-plated
Supply includes
Enclosure with cover | 180° hinges (2) | Support rail TH 35/7.5 | Quick-release fastener including plastic bushes
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
Dimensions
Width: 400 mm | Height: 200 mm | Depth: 123 mm
Material thickness - enclosure
1.5 mm
Material thickness - door
1.25 mm
Door hinge position
bottom
Number of support rails
1
Lock
Lock version: Quick-release fastener including plastic bushes | Number of locks: 2
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Weight/pack
4.5 kg
Customs tariff number
94032080
EAN
4028177009912
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
BG Bus enclosure, WHD: 400x200x123 mm, Stainless steel 1.4301, without mounting plate, with cover, with support rail
View this page as PDF DE, EN
