1566000
Part Number: 1566000
Manufacturer
Rittal
Part number
1566000
Alt Part Number
KX 1566.000
Product Information
Extended Description

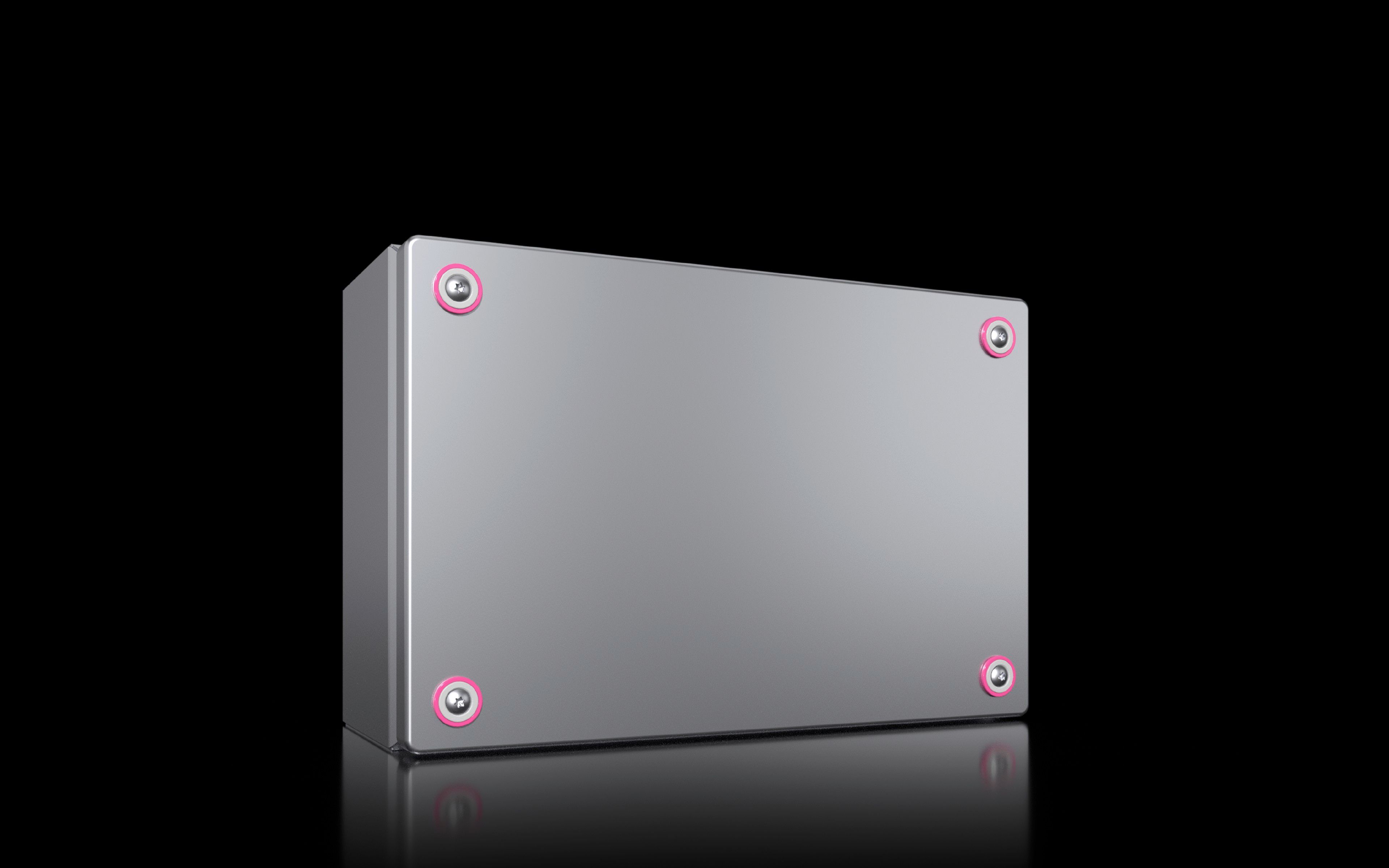

1566000 Rittal: KX Terminal box, WHD: 300x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners
Article number
KX 1566.000
Product description
The stainless steel terminal box KX delivers maximum data quality and consistency of engineering while ensuring flexibility and reliability across a wide range of applications.
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISIÂ 304), all-round foamed-in PU seal
Surface finish
Enclosure and cover: Brushed, grain 180
Supply includes
Enclosure with cover | Quick-release fastener including plastic bushes
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 66
Type rating to UL 50E
Type 1
Dimensions
Width:Â 300 mm | Height:Â 200 mm | Depth:Â 120 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Lock
Number of locks:Â 4
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
2.81 kg
PCF per pack (cradle-to-gate)
13.8Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
84879090
EAN
4028177919204
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX Terminal box, WHD: 300x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners
