1582000
Part Number: 1582000
Product Information
Extended Description

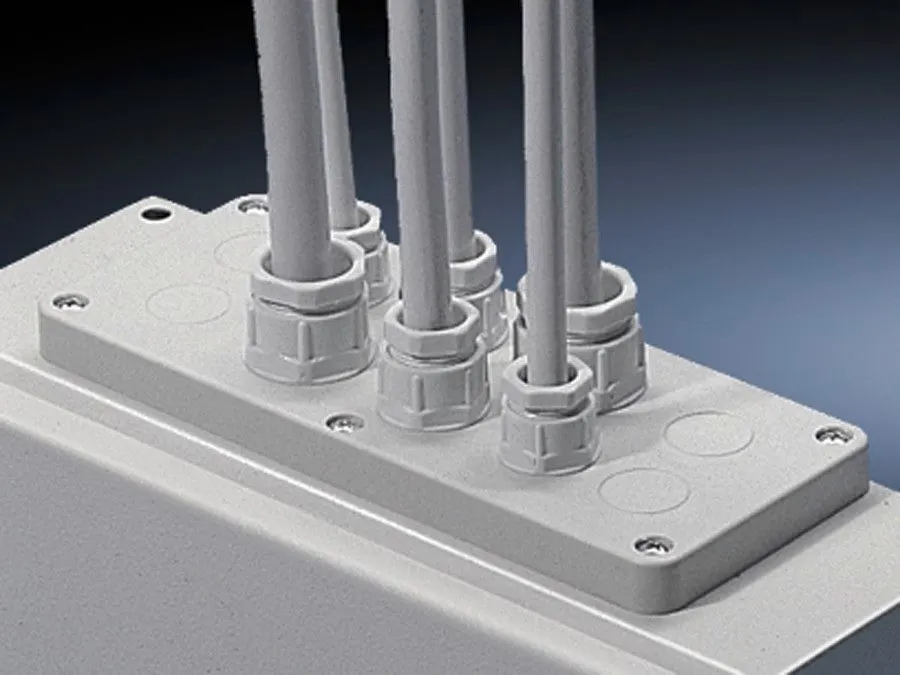

1582000 Rittal: KL Plastic cable gland plate, with PG knock-outs, WD: 220x90 mm, size: 2, PG knockouts: 13.5
Article number
KL 1582.000
Product description
With pre-punched PG holes for cable glands. Use seal for standard gland plates.
Material
ABS
Colour
RAL 7035
Note
The allocation of gland plate sizes is indicated on the relevant enclosures
No. of metric knockouts
6 | 2 | 2 |
Number x PG diameter
6 x 13.5 | 2 x 16 | 2 x 21
Dimensions
Width: 220 mm | Depth: 90 mm
To fit
Enclosure type: KL
Gland plate
Size: 2
Operating temperature range
-40 °C...70 °C
Protection category to IEC 60 529
IP 55 if installed correctly
Number knockouts
6 | 2 | 2
Packs of
5 pc(s).
Weight/pack
0.58 kg
Customs tariff number
73269098
EAN
4028177010901
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
KL Plastic cable gland plate, with PG knock-outs, WD: 220x90 mm, size: 2, PG knockouts: 13.5
