1585000
Part Number: 1585000
Manufacturer
Rittal
Part number
1585000
Alt Part Number
KX 1585.000
Product Information
Extended Description

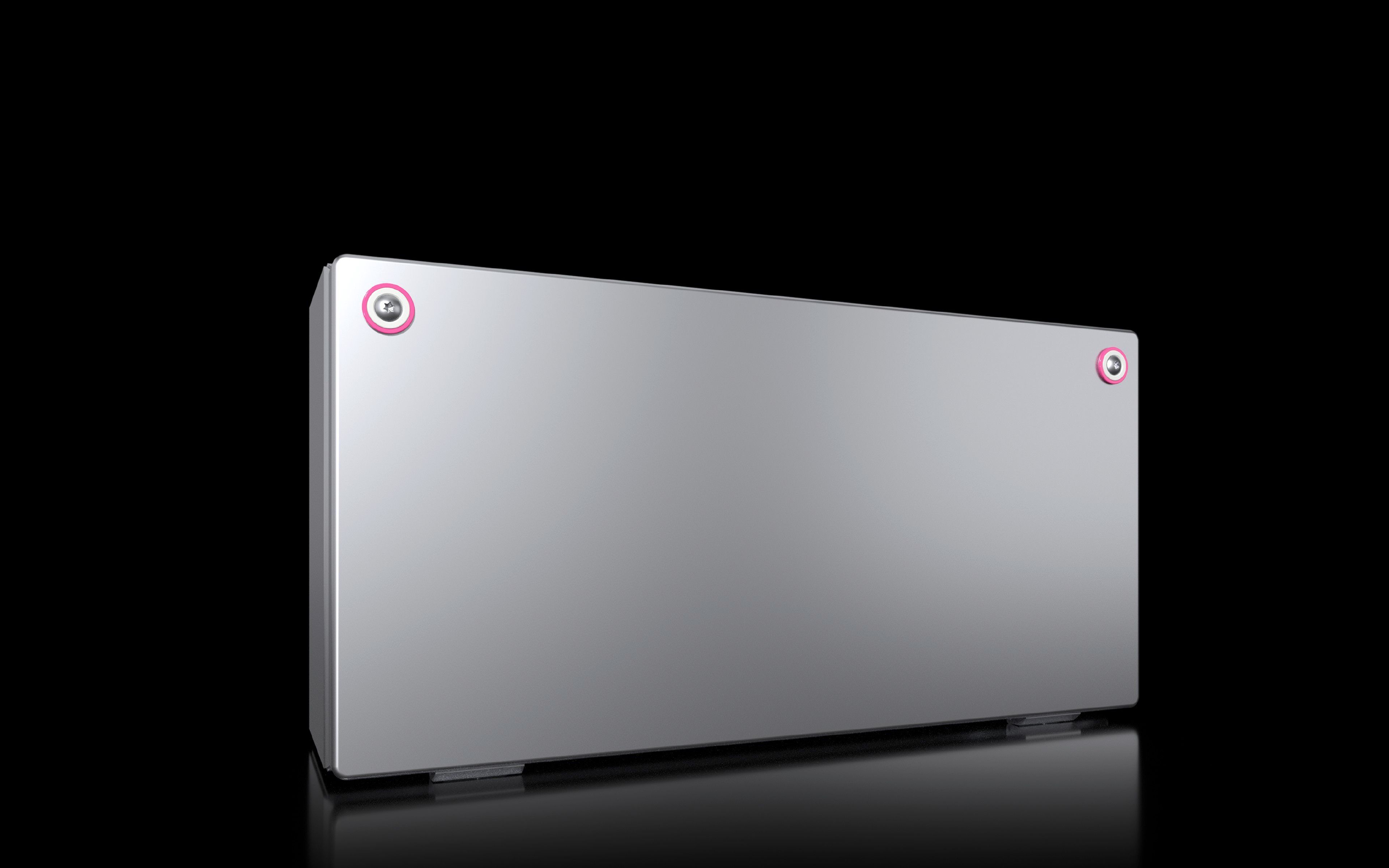

1585000 Rittal: KX Bus enclosure, WHD: 400x200x120 mm, stainless steel 1.4301, with hinged lid, with quick-release fasteners
Article number
KX 1585.000
Product description
The stainless steel bus enclosure KX offers excellent accessibility with 180° hinges as standard, plus a high protection category of IP66.
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISIÂ 304), all-round foamed-in PU seal | Hinges: Die-cast zinc
Surface finish
Enclosure and cover: Brushed, grain 180 | 180° hinges: chrome-plated
Supply includes
Enclosure with cover | 180° hinges | Quick-release fastener including plastic bushes
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 66
Type rating to UL 50E
Type 1
Dimensions
Width:Â 400 mm | Height:Â 200 mm | Depth:Â 120 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
3.46 kg
PCF per pack (cradle-to-gate)
16.7Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177919112
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX Bus enclosure, WHD: 400x200x120 mm, stainless steel 1.4301, with hinged lid, with quick-release fasteners
