1588000
Part Number: 1588000
Manufacturer
Rittal
Part number
1588000
Alt Part Number
KX 1588.000
Product Information
Extended Description

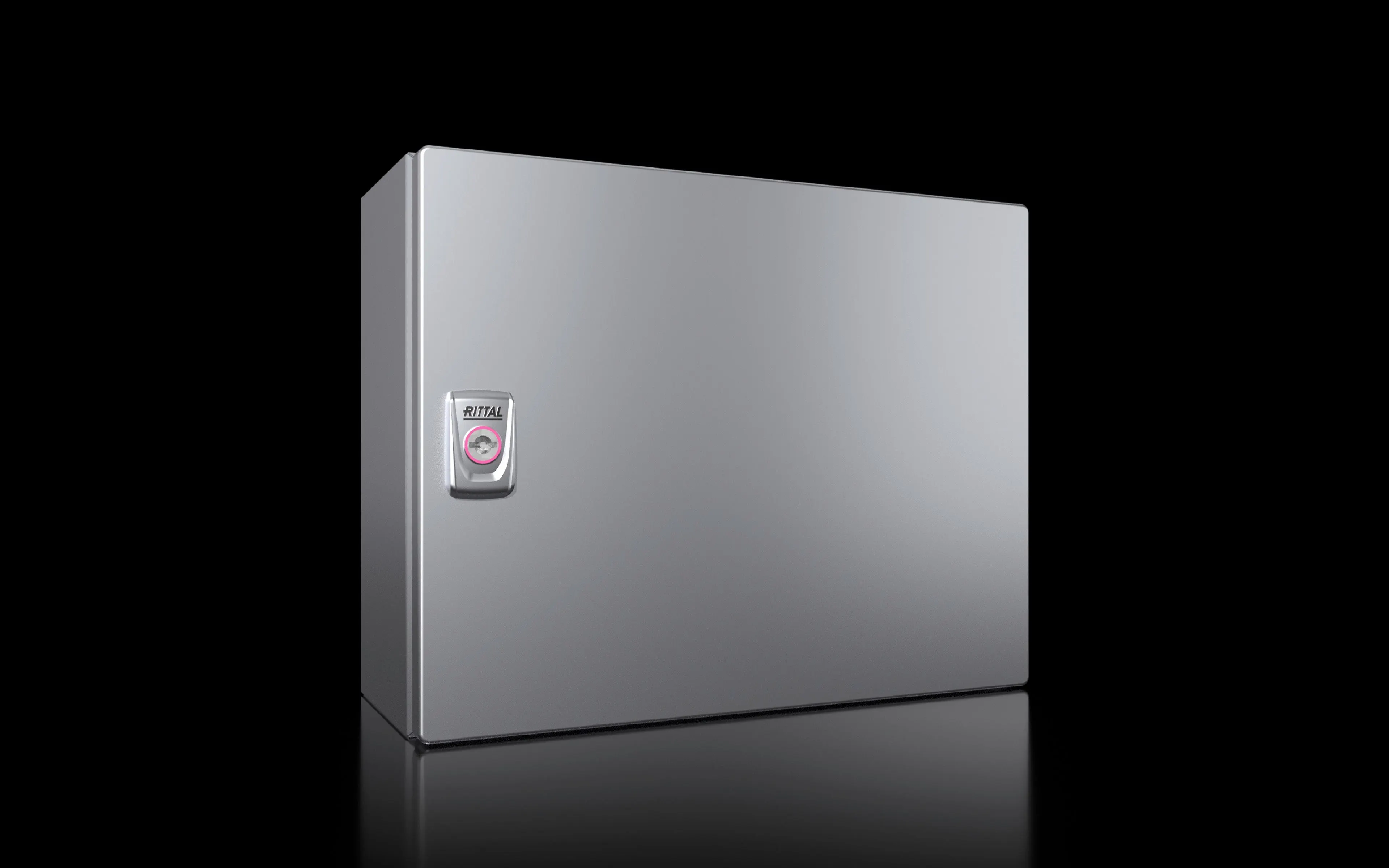

1588000 Rittal: KX E-Box, WHD: 380x300x155 mm, stainless steel 1.4301, with mounting plate, single-door, with cam lock
Article number
KX 1588.000
Product description
The stainless steel E-Box KX provides user-friendly assembly as well as flexibility when choosing your lock system. The 180° hinges supplied as standard provide excellent accessibility to the enclosure interior.
Material
Enclosure: Stainless steel | Door: Stainless steel, all-round foamed-in PU seal | Mounting plate: Sheet steel | Stainless steel 1.4301 (AISIÂ 304)
Surface finish
Enclosure and cover: Brushed, grain 180 | Mounting plate: Zinc-plated
Supply includes
Mounting plate | Cam lock with 3 mm double-bit insert
Protection category to IEC 60 529
IP 65
Type rating to UL 50E
Type 1
Dimensions
Width:Â 380 mm | Height:Â 300 mm | Depth:Â 155 mm
Dimensions mounting plate (W x H)
365 mm x 275 mm
Material thickness - enclosure
1.25 mm
Material thickness - door
1.25 mm
Lock
Number of locks:Â 1
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
6.45 kg
PCF per pack (cradle-to-gate)
24Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177919143
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX E-Box, WHD: 380x300x155 mm, stainless steel 1.4301, with mounting plate, single-door, with cam lock
