1610000
Part Number: 1610000
Manufacturer
Rittal
Part number
1610000
Alt Part Number
KX 1610.000
Product Information
Extended Description

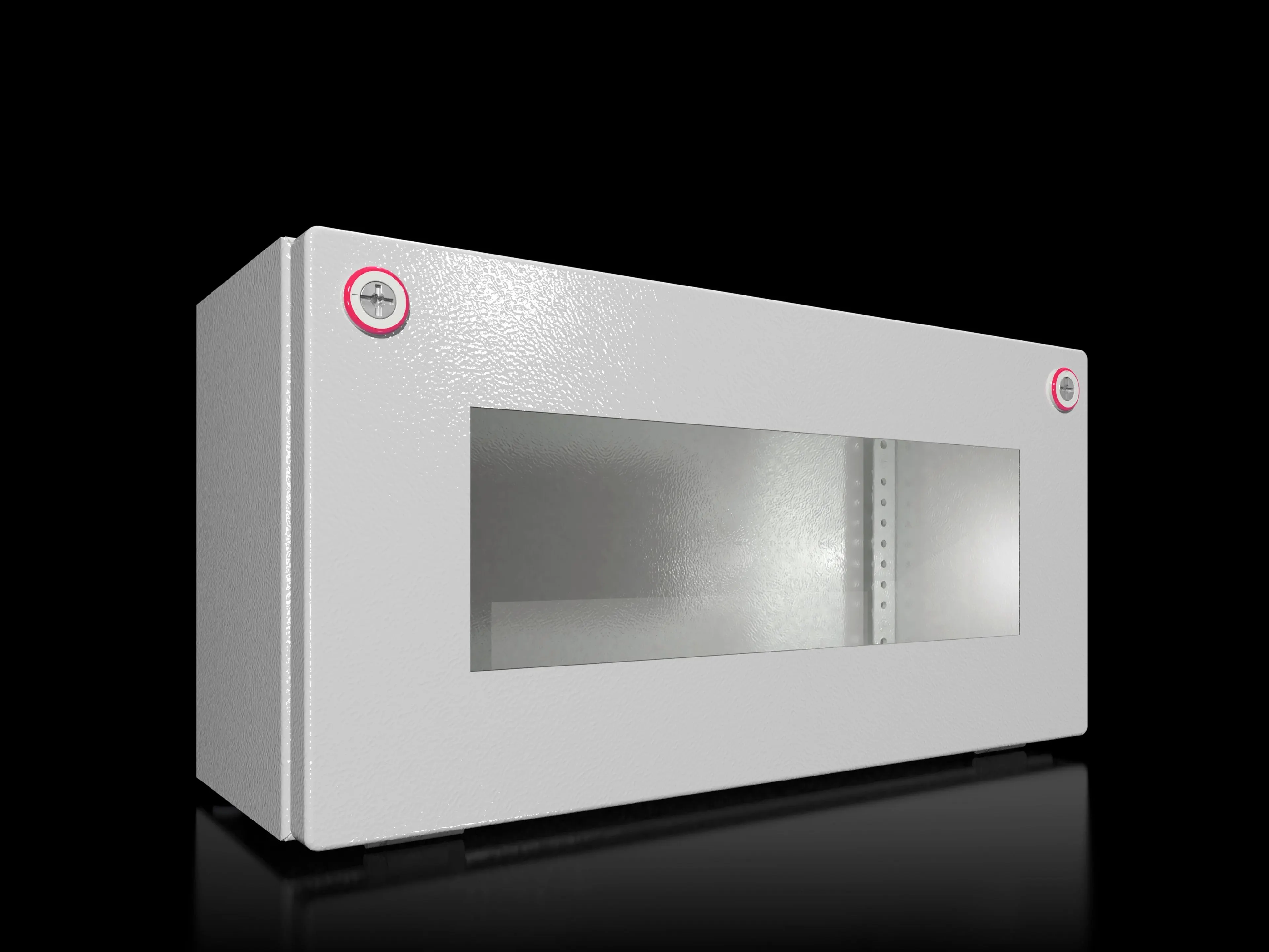

1610000 Rittal: KX Bus enclosure, WHD: 400x200x155 mm, sheet steel, with solid base, with hinged cover and viewing window
Article number
KX 1610.000
Design
with viewing window
Material
Enclosure: Sheet steel | Cover: Sheet steel, all-round foamed-in PU seal | Viewing window: Polycarbonate, 4 mm
Surface finish
Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure with hinged cover | Viewing window in cover | Mini cam locks
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 65
Type rating to UL 50E
Type 1
IK Code
IK08
Dimensions
Width: 400 mm | Height: 200 mm | Depth: 155 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
3.95 kg
PCF per pack (cradle-to-gate)
19.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177816671
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX Bus enclosure, WHD: 400x200x155 mm, sheet steel, with solid base, with hinged cover and viewing window
