1612100
Part Number: 1612100
Manufacturer
Rittal
Part number
1612100
Alt Part Number
KX 1612.100
Product Information
Extended Description

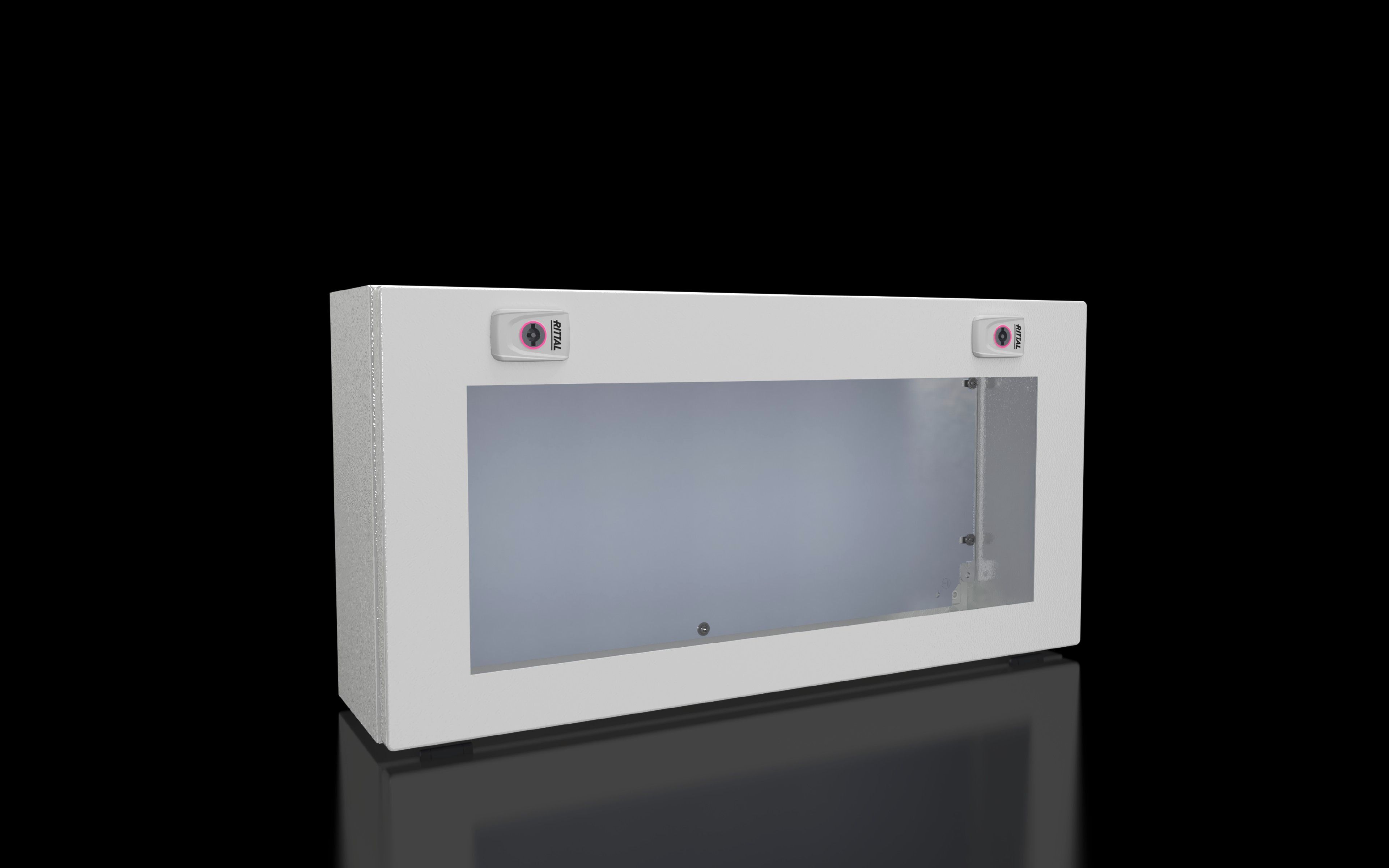

1612100 Rittal: KX Bus enclosure, WHD: 600x300x155 mm, with mounting plate and cam lock
Article number
KX 1612.100
Design
with viewing window
Material
Enclosure: Sheet steel | Cover: Sheet steel, all-round foamed-in PU seal | Viewing window: Polycarbonate, 4 mm | Mounting plate: Sheet steel, zinc-plated
Surface finish
Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure with hinged cover | Viewing window in cover | Mounting plate | Cam lock with 3 mm double-bit insert
Protection category NEMA
NEMA 1
Protection category to IEC 60 529
IP 65
Type rating to UL 50E
Type 1
IK Code
IK08
Dimensions
Width:Â 600 mm | Height:Â 300 mm | Depth:Â 155 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Material thickness of mounting plate
2 mm
Basic material
Sheet steel
Customs tariff number
94032080
EAN
4028177970045
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX Bus enclosure, WHD: 600x300x155 mm, with mounting plate and cam lock
