1671600
Part Number: 1671600
Product Information
Extended Description

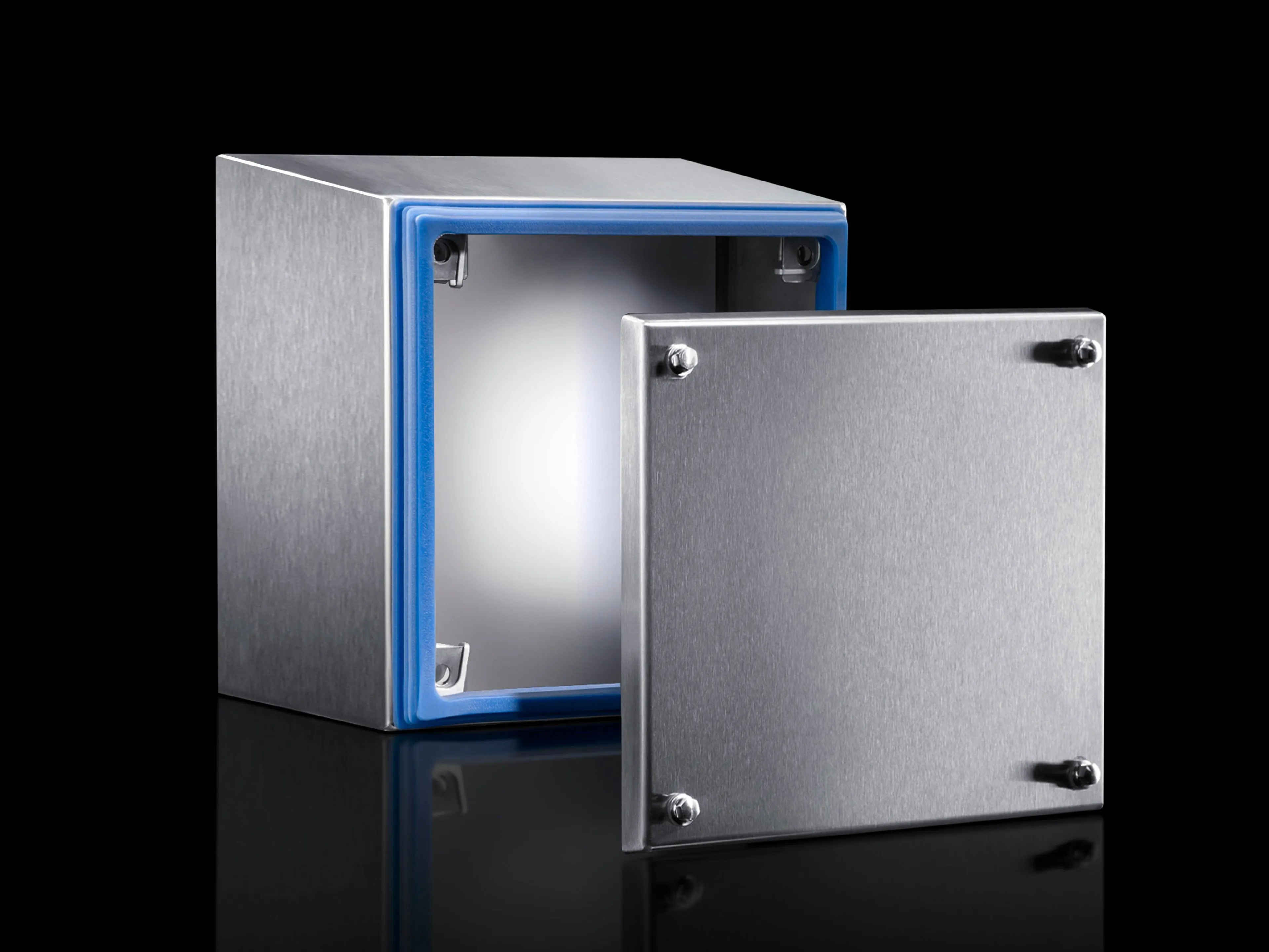

1671600 Rittal: HD Terminal box, WHD: 150x150x120 mm, Stainless steel 1.4301, with cover and silicone seal
Article number
HD 1671.600
Design
Hygienic Design enclosure
Material
Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm | Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm | Screw plug: Stainless steel | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish
Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Cover | Mounting bracket (pre-assembled) | Seal and screw plug (supplied loose)
Dimensions
Width front:Â 150 mm | Width (rear):Â 177 mm | Height, front:Â 150 mm | Height rear:Â 177 mm | Depth:Â 120 mm
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISIÂ 304)
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
2.2 kg
Customs tariff number
94032080
EAN
4028177639744
ETIM 8
EC002713
ETIM 7.0
EC002713
ECLASS 8.0
27180101
Product description
HD Terminal box, WHD: 150x150x120 mm, Stainless steel 1.4301, with cover and silicone seal
