1682600
Part Number: 1682600
Product Information
Extended Description

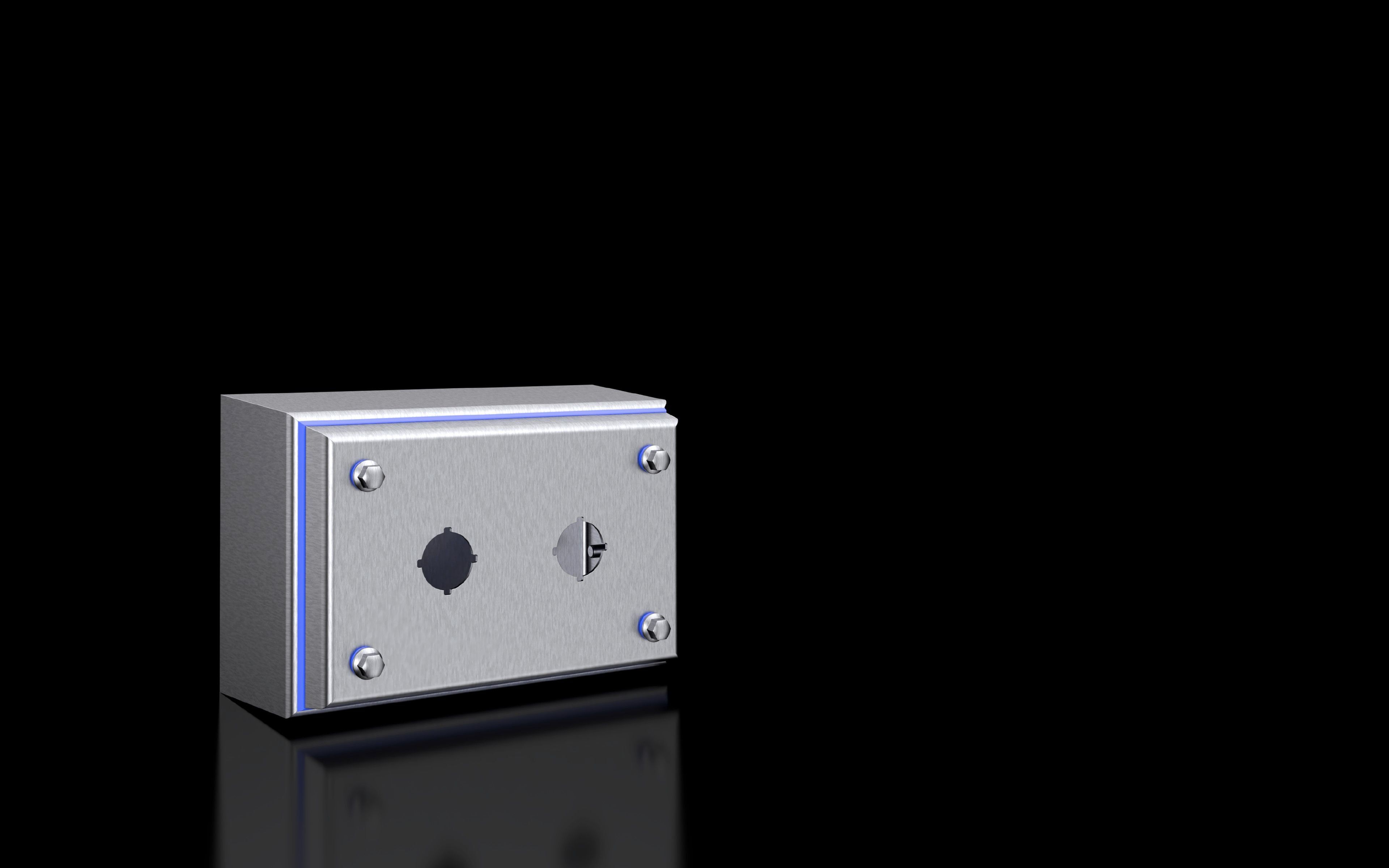

1682600 Rittal: HD switch housing, WxHxD: 100x160x90 mm, stainless steel 1.4301, 2 switch cut-outs, Ø 22.5 mm
Article number
HD 1682.600
Design
Hygienic Design enclosure
Material
Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm | Screw plug: Stainless steel | Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish
Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm | Seal: Blue, dyed (RAL 5010)
Supply includes
Enclosure of all-round solid construction | Cover with switch cut-out | Seal and screw plug (supplied loose)
Dimensions
Width front: 100 mm | Width (rear): 122 mm | Height, front: 160 mm | Height rear: 182 mm | Depth: 90 mm
Pitch pattern
60 mm
Cut-outs (quantity x diameter)
2 x 22.5 mm
IK Code
IK08
Basic material
Stainless steel 1.4301 (AISI 304)
Lock
Lock version: Hygiene-compliant quick-release hexagon fastener | Number of locks: 4
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
1.3 kg
Customs tariff number
94039910
EAN
4028177958678
ETIM 9
EC002713
ETIM 8
EC002713
ECLASS 8.0
27180101
Product description
HD switch housing, WxHxD: 100x160x90 mm, stainless steel 1.4301, 2 switch cut-outs, Ø 22.5 mm
