2323235
Part Number: 2323235
Product Information
Extended Description

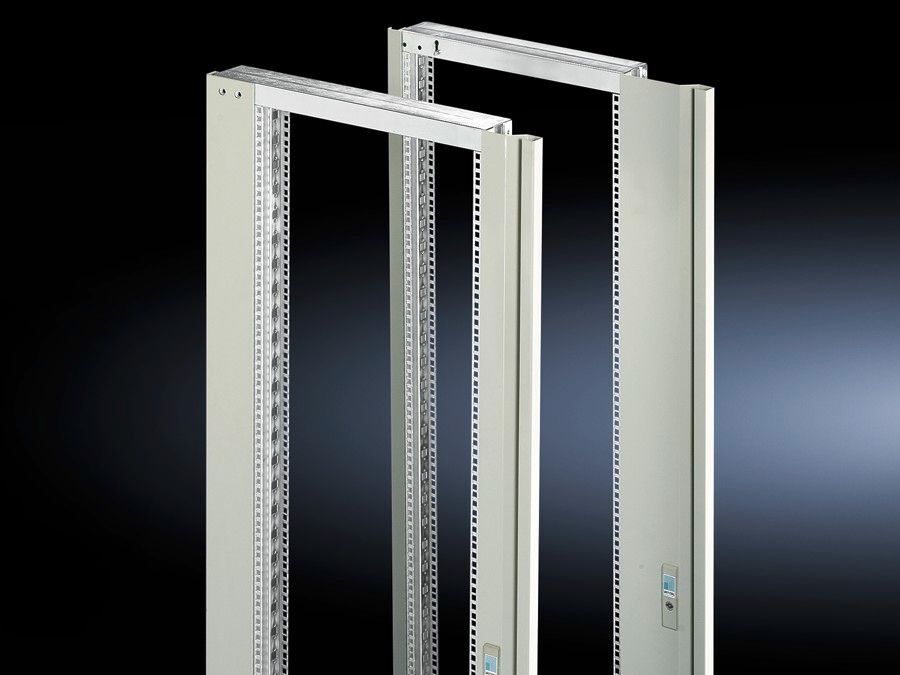

2323235 Rittal: SR Swing frame, large, with trim panel, for TS, VX SE, for W: 800 mm, 22 U, installed at the side
Article number
SR 2323.235
Design
482.6 mm (19") level, side
Product description
For mounting 482.6 mm (19Ëť) equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
RAL 7035
Supply includes
Locking rod system with double-bit lock insert | Material for attaching
Installation options
In the TS/SE with 130° or 180° opening angle, depending on the chosen mounting kit
Assembly instruction
Depending on the mounting situation, TS punched sections with mounting flanges 23 x 73 mm or 17 x 73 mm are required
Note
For further installation options, see "Technical details"
To fit
Enclosure type: TS | VX SE | Width: = 800 mm | Height: ≥ 1,200 mm
Units
22 U
To fit enclosure type
TS
Packs of
1 pc(s).
Weight/pack
14.85 kg
Customs tariff number
94039910
EAN
4028177165106
ETIM 9
EC002620
ETIM 8
EC002620
ECLASS 8.0
27189261
Product description
SR Swing frame, large, with trim panel, for TS, VX SE, for W: 800 mm, 22 U, installed at the side
