2328000
Part Number: 2328000
Product Information
Extended Description

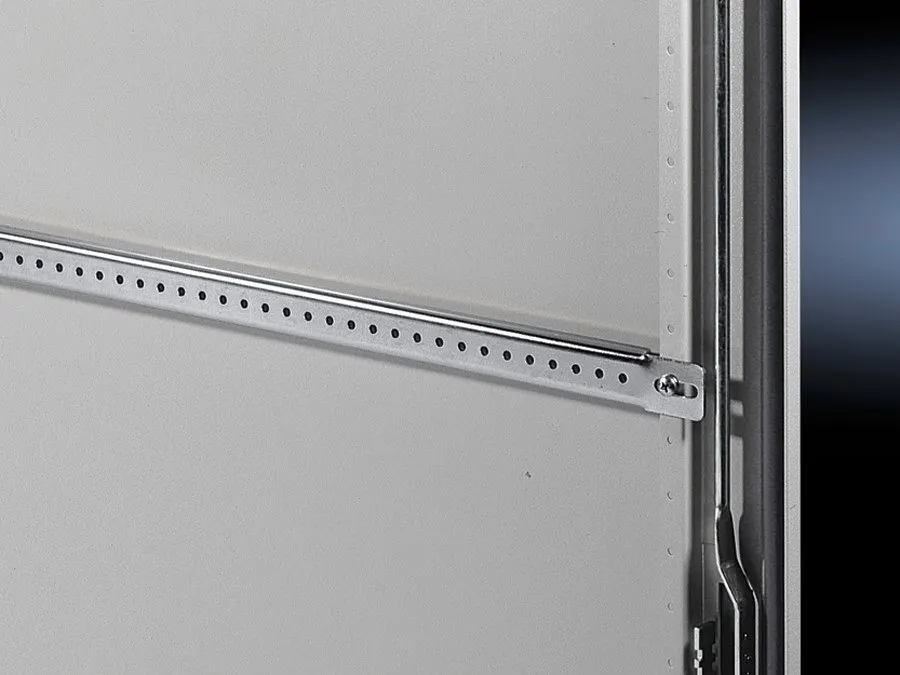

2328000 Rittal: SZ Support strip, for AE, for W: 800 mm
Article number
SZ 2328.000
Product description
For attaching cable ducts, cable conduit holders, contact hazard protection cover plates, door installations, cable clamping and attachment.
Technical specifications
4.5 mm diameter hole on a 25 mm pitch pattern
Applications
For attachment of
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
In doors
Assembly instruction
With AE stainless steel, the perforated mounting strip is additionally required
Note
Depending on the AE type, it may be necessary to cut the support strips to length at the knockout
To fit enclosure type
AE
Suitable for width
= 800 mm
Packs of
20 pc(s).
Weight/pack
6.76 kg
Customs tariff number
73269098
EAN
4028177021327
ETIM 9
EC002625
ETIM 8
EC002625
ECLASS 8.0
27189234
Product description
SZ Support strip, for AE, for W: 800 mm
