2342235
Part Number: 2342235
Product Information
Extended Description

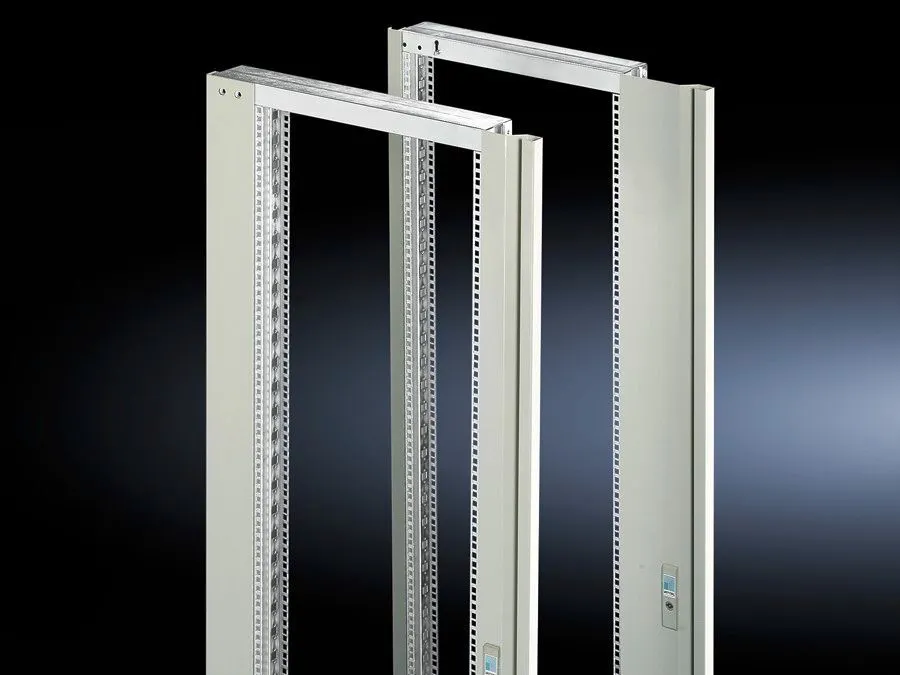

2342235 Rittal: SR Swing frame, large, with trim panel, for TS, VX SE, for W: 800 mm, 40 U, installed at the centre
Article number
SR 2342.235
Design
482.6 mm (19") level, centre
Product description
For mounting 482.6 mm (19˝) equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
RAL 7035
Supply includes
Locking rod system with double-bit lock insert | Material for attaching
Installation options
In the TS/SE with 180° opening angle
Assembly instruction
Depending on the mounting situation, TS punched sections with mounting flanges 23 x 73 mm or 17 x 73 mm are required
Note
For further installation options, see "Technical details"
To fit
Enclosure type: TS | VX SE | Width: = 800 mm | Height: ≥ 2,000 mm
Units
40 U
To fit enclosure type
TS
Packs of
1 pc(s).
Weight/pack
23.6 kg
Customs tariff number
94039910
EAN
4028177165212
ETIM 9
EC002620
ETIM 8
EC002620
ECLASS 8.0
27189261
Product description
SR Swing frame, large, with trim panel, for TS, VX SE, for W: 800 mm, 40 U, installed at the centre
