2368001

Part Number: 2368001
2368001
Manufacturer
Rittal
Part number
2368001
Category
Alt Part Number
SG 2368.001

Product Information

Extended Description

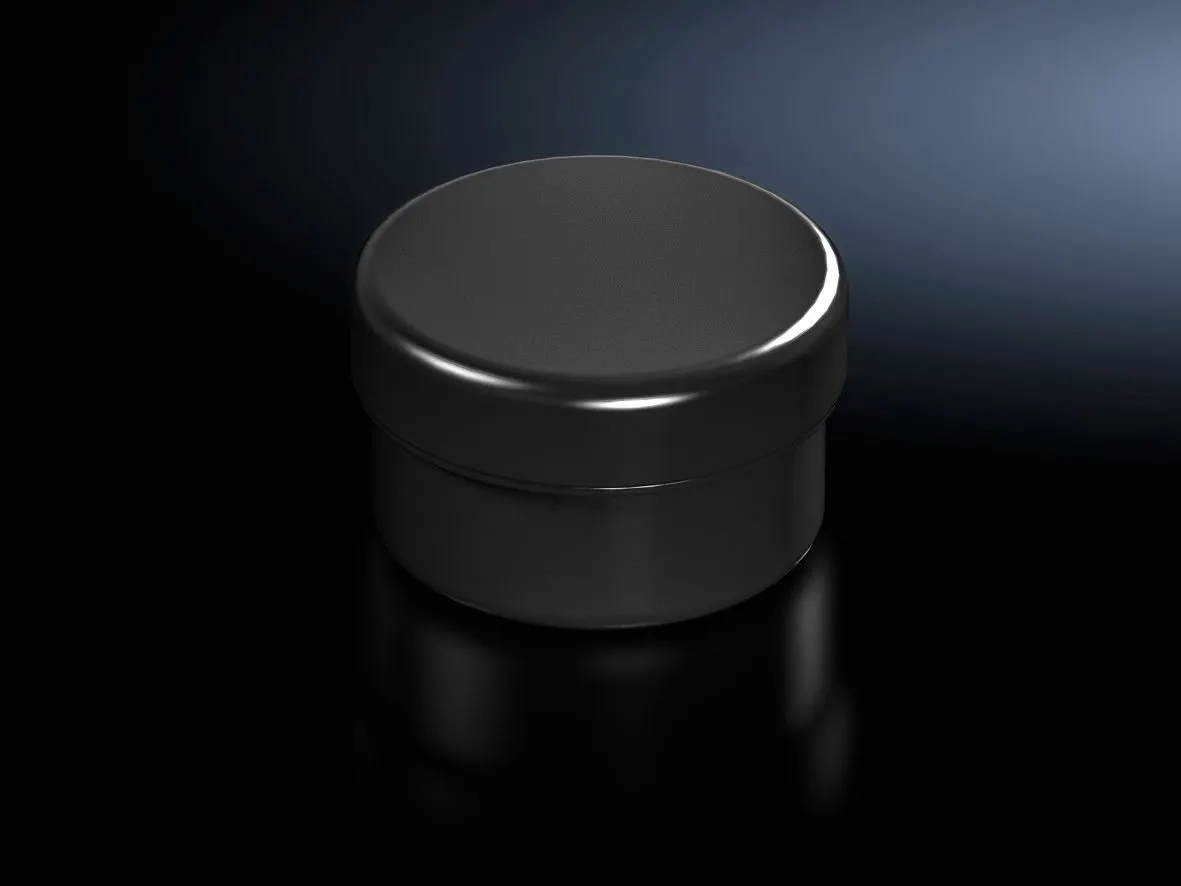

2368001 Rittal: SG connection component for tube
Article number
SG 2368.001
Design
for conduit mounting
Product description
Optionally for conduit or wall/base mounting. Screwless spring terminals in the connection component. With cover for optical components. Contact hazard protection to VDE.
Benefits
Simple assembly and contact via bayonet fastener.
Function principle
A modular layout is possible with connection, optical and acoustic components and a label panel
Material
Enclosure of polyamide
Colour
Black
Signal pillar
modular
Protection category to IEC 60 529
IP 65
Rated operating voltage
12 V - 230 V (AC/DC)
Packs of
1 pc(s).
Weight/pack
0.097 kg
Customs tariff number
39269097
EAN
4028177953574
ETIM 9
EC001152
ETIM 8
EC001152
ECLASS 8.0
27371232
Product description
SG connection component for tube
