2372102
Part Number: 2372102
Manufacturer
Rittal
Part number
2372102
Category
Alt Part Number
SG 2372.102
Product Information
Extended Description

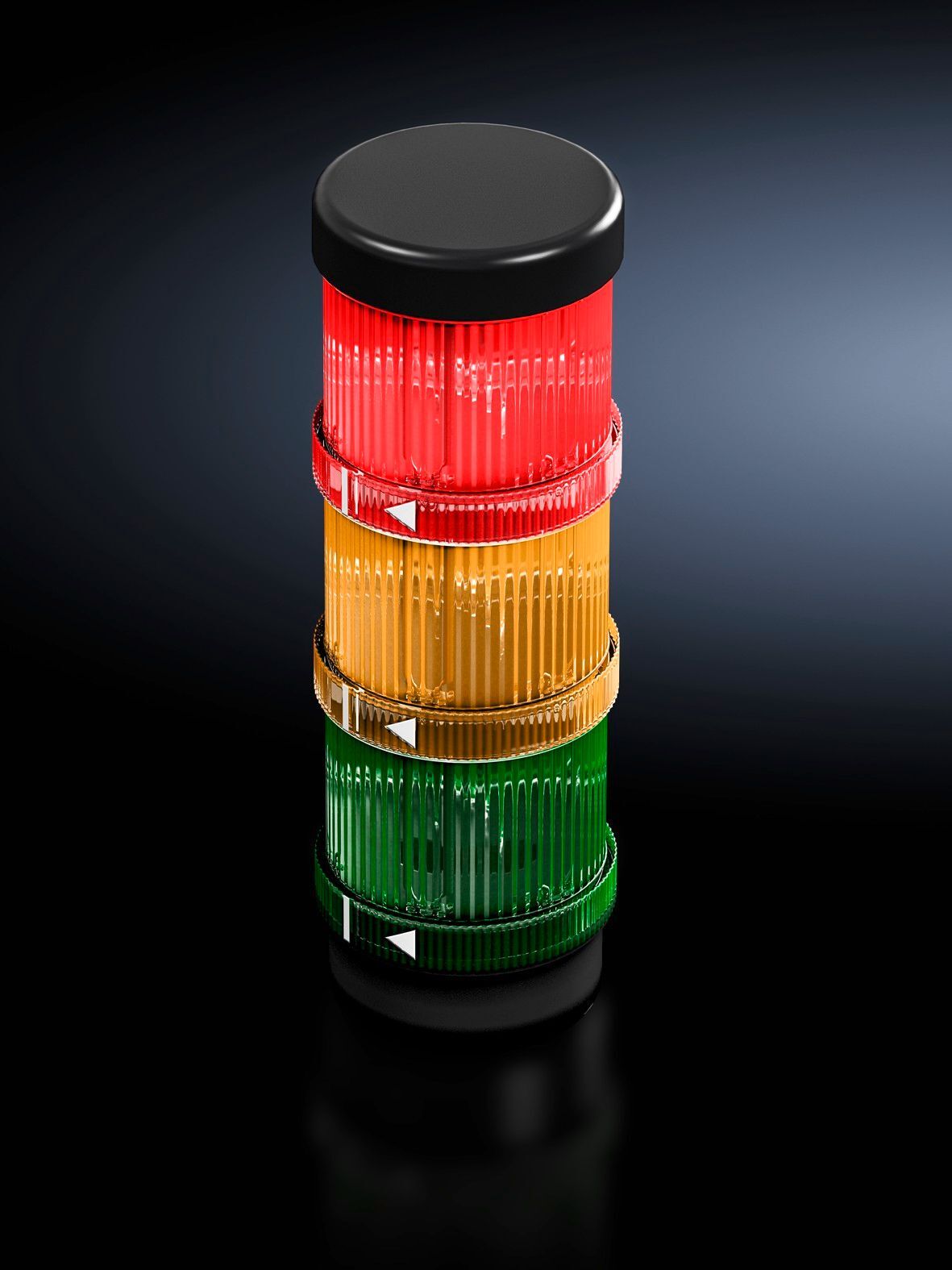

2372102 Rittal: SG signal pillar, LED compact for wall mounting
Article number
SG 2372.102
Design
for wall/base mounting
Benefits
Complete, ready-to-connect solution
Technical specifications
3-stage, red, yellow, green
Cable entry
Min. cable diameter:Â 3 mm | Max. cable diameter:Â 6.5 mm
Type of electrical connection
Screwless spring terminals
Light
LEDs
Dimensions
Height:Â 211.5 mm
Operating temperature range
-20 °C...50 °C
Protection category to IEC 60 529
IP 65
Rated operating voltage
24Â V
Thread
M12 x 1.5
Packs of
1 pc(s).
Weight/pack
0.309 kg
Customs tariff number
85318070
EAN
4028177953765
ETIM 9
EC001042
ETIM 8
EC001042
ECLASS 8.0
27371230
Product description
SG signal pillar, LED compact for wall mounting
