2384040
Part Number: 2384040
Manufacturer
Rittal
Part number
2384040
Alt Part Number
SM 2384.040
Product Information
Extended Description

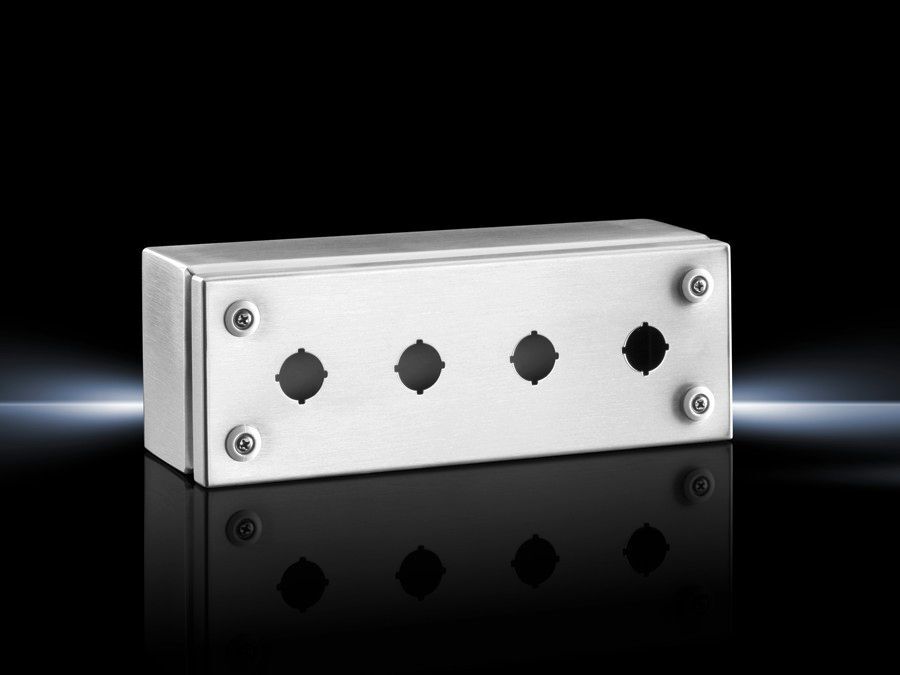

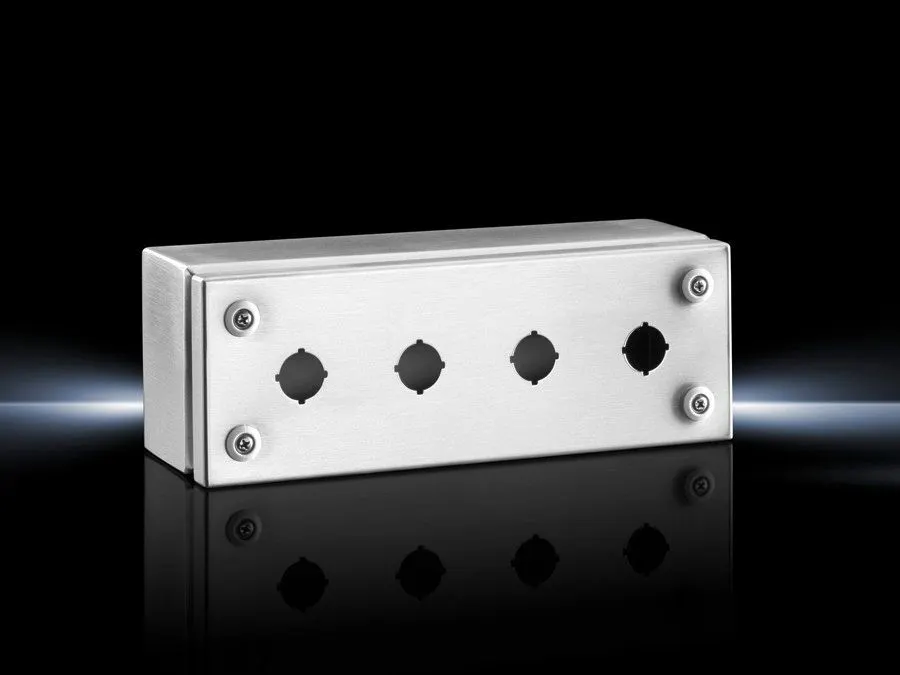

2384040 Rittal: SM Switch housing, WHD: 280x100x90 mm, Stainless steel 1.4301, without mounting plate, 4 switch cut-outs
Article number
SM 2384.040
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISIÂ 304), all-round foamed-in PU seal
Surface finish
Enclosure and cover: Brushed, grain 240
Supply includes
Enclosure with cover | Quick-release fastener including plastic bushes
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width:Â 280 mm | Height:Â 100 mm | Depth:Â 90 mm
Material thickness - cover
1.25 mm
Material thickness - enclosure
1.25 mm
Pitch pattern
60 mm
Cut-outs (quantity x diameter)
4 x 22.5 mm
Lock
Lock version:Â Quick-release fastener including plastic bushes | Number of locks:Â 4
Cable entry (quantity x diameter)
4
No. of metric knockouts
4
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Packs of
1 pc(s).
Weight/pack
1.5 kg
Customs tariff number
94039910
EAN
4028177529441
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
SM Switch housing, WHD: 280x100x90 mm, Stainless steel 1.4301, without mounting plate, 4 switch cut-outs
