2388125
Part Number: 2388125
Manufacturer
Rittal
Part number
2388125
Alt Part Number
SZ 2388.125
Product Information
Extended Description
2388125 Rittal: SZ Rail, for EMC rail and stain relief, for W: 1200 mm
Article number
SZ 2388.125
Design
C rail to accommodate cable clamps | T-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties
Product description
Combined rail for strain relief and EMC contacting of inserted cables.
Benefits
Additional contacting on the left or right of the rail via existing holes (9 mm diameter)
Material
Extruded aluminium section
Surface finish
Chromium-free passivated
Supply includes

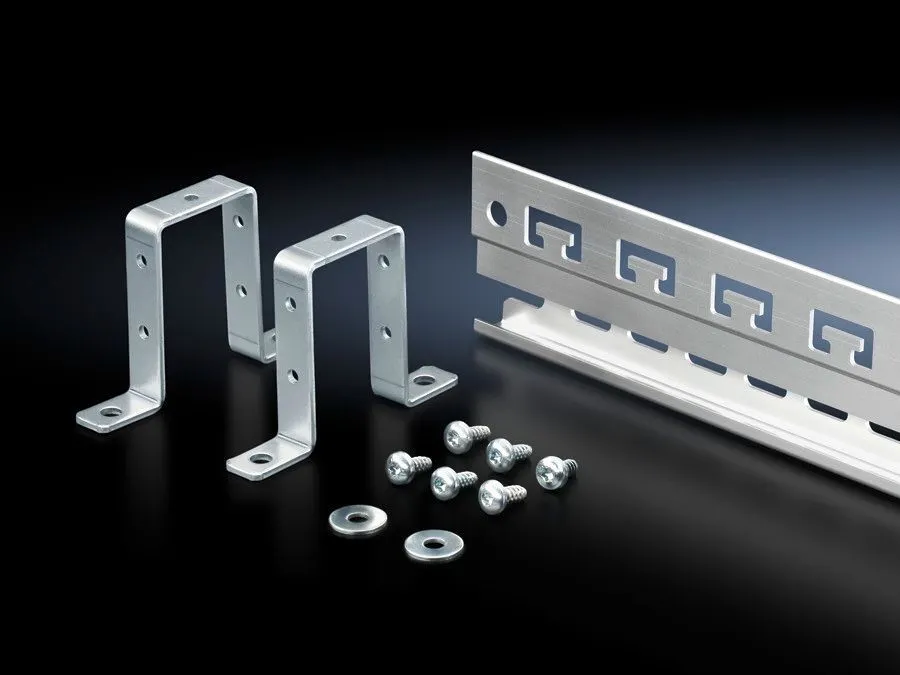

1 rail | 2 retaining brackets | Assembly parts
Length
1,153 mm
Installation options
on the horizontal/vertical enclosure section
To fit
Enclosure type: VX | TS | Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
1.02 kg
Customs tariff number
73269098
EAN
4028177698949
ETIM 9
EC002625
ETIM 8
EC002625
ECLASS 8.0
27189234
Product description
SZ Rail, for EMC rail and stain relief, for W: 1200 mm
