2388200
Part Number: 2388200
Manufacturer
Rittal
Part number
2388200
Alt Part Number
SZ 2388.200
Product Information
Extended Description

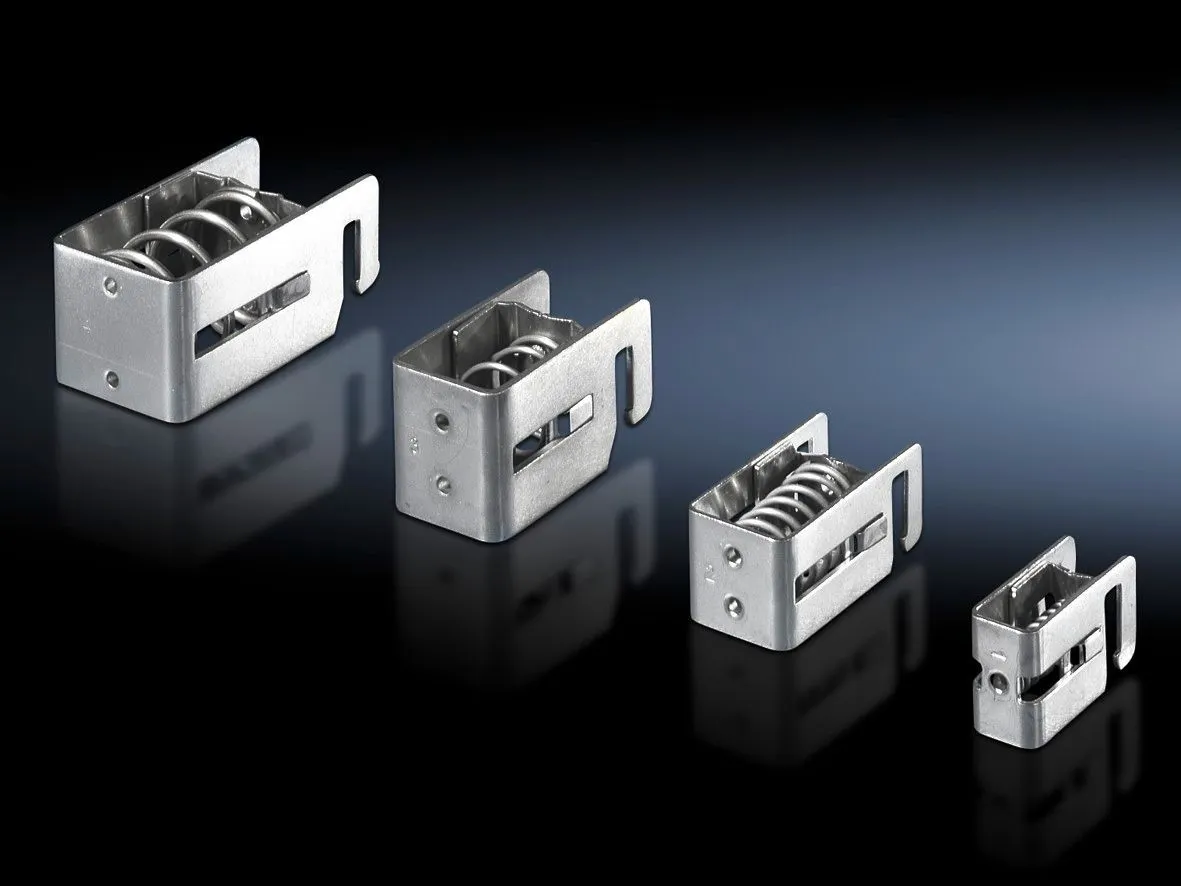

2388200 Rittal: SZ EMC shielding bracket, for cable diameter 10-20 mm
Article number
SZ 2388.200
Product description
Quick assembly without the use of tools: Press the EMC shielding bracket against the cable shield and clip into the rail. Diameter changes are compensated in full by the spring of the EMC shielding bracket.
Material
Sheet steel
Surface finish
Zinc-plated
Shield diameter (min.)
10 ‐ 20 mm
Packs of
10 pc(s).
Weight/pack
0.36 kg
PCF per pack (cradle-to-gate)
1.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177318250
ETIM 9
EC002020
ETIM 8
EC002020
ECLASS 8.0
27141150
Product description
SZ EMC shielding bracket, for cable diameter 10-20 mm
