2400000
Part Number: 2400000
Product Information
Extended Description

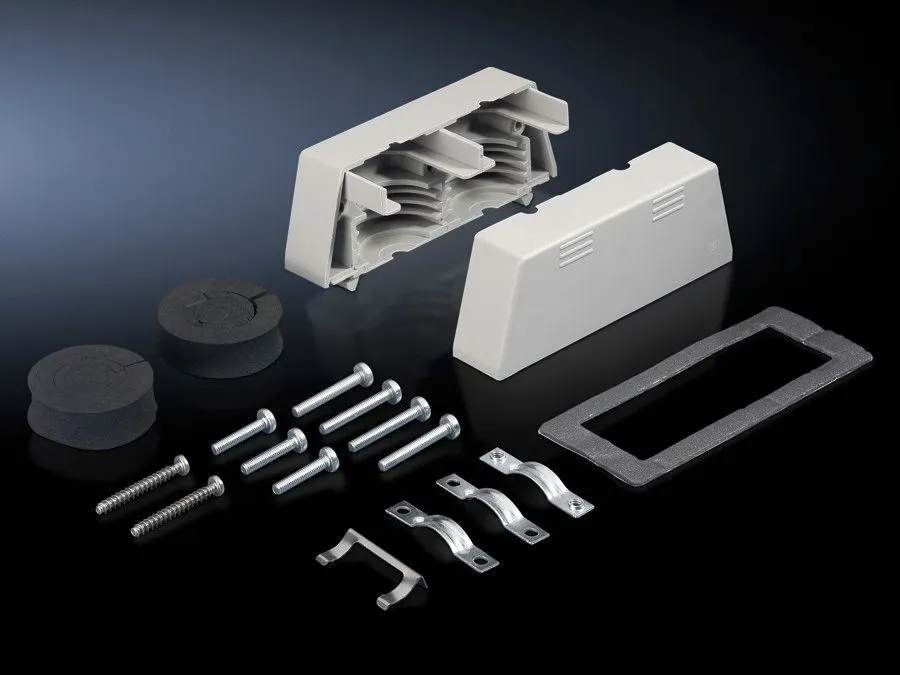

2400000 Rittal: SZ Connector gland, for connector pads (24-pole), for cables ø 8-36 mm
Article number
SZ 2400.000
Product description
For the entry of 2 pre-assembled cables in the connector cut-out, without dismantling the connector.
Material
Enclosure: Plastic | Clamps: Sheet steel
Surface finish
Clamps: Zinc-plated
Supply includes
2 half shells | Mounting clamp | Assembly parts
Dimensions
Width: 142 mm | Height: 50 mm | Depth: 54 mm
For cable diameters
8 ‐ 36 mm
Packs of
1 pc(s).
Weight/pack
0.28 kg
PCF per pack (cradle-to-gate)
1.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177022263
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
SZ Connector gland, for connector pads (24-pole), for cables ø 8-36 mm
