2412225
Part Number: 2412225
Manufacturer
Rittal
Part number
2412225
Alt Part Number
SZ 2412.225
Product Information
Extended Description

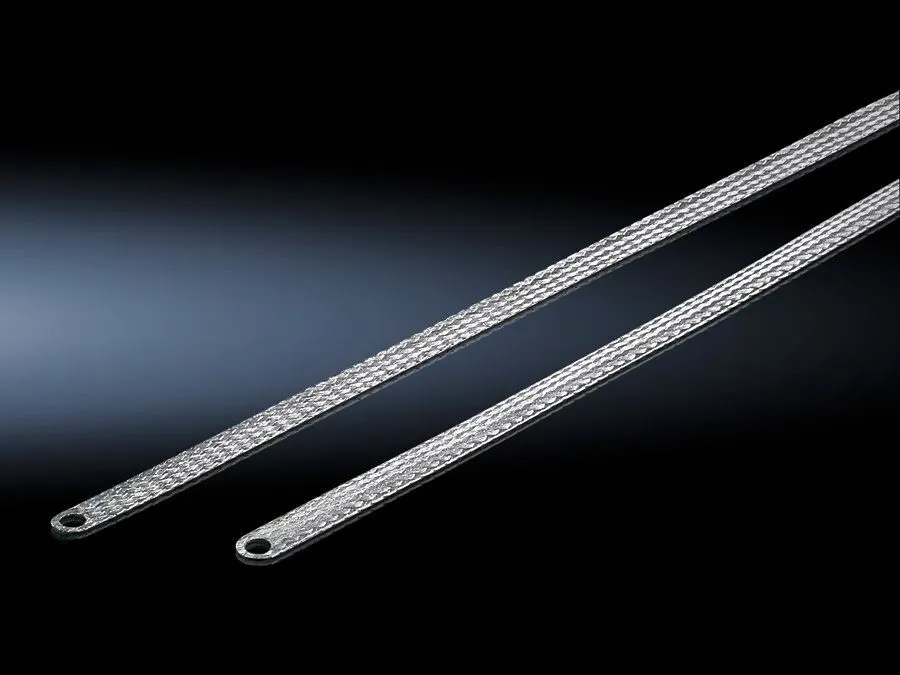

2412225 Rittal: SZ Earthing strap, size: M8, for diameter 25 mm²
Article number
SZ 2412.225
Product description
Tin-plated copper, in various lengths and cross-sections with press-fitted contact rings. Earthing braids counteract the current displacement effect at high frequencies, whilst at the same time offering highly flexible connection opportunities.
Cross-section
25 mm²
Connection
M8 – M8
Note
Please observe the assembly instructions or PE conductor brochure for the relevant enclosure or case system.
Dimensions
Length: 200 mm
Packs of
10 pc(s).
Weight/pack
0.56 kg
Customs tariff number
74198010
EAN
4028177022577
ETIM 9
EC000839
ETIM 8
EC000839
ECLASS 8.0
27062302
Product description
SZ Earthing strap, size: M8, for diameter 25 mm²
