2416000
Part Number: 2416000
Manufacturer
Rittal
Part number
2416000
Alt Part Number
SZ 2416.000
Product Information
Extended Description

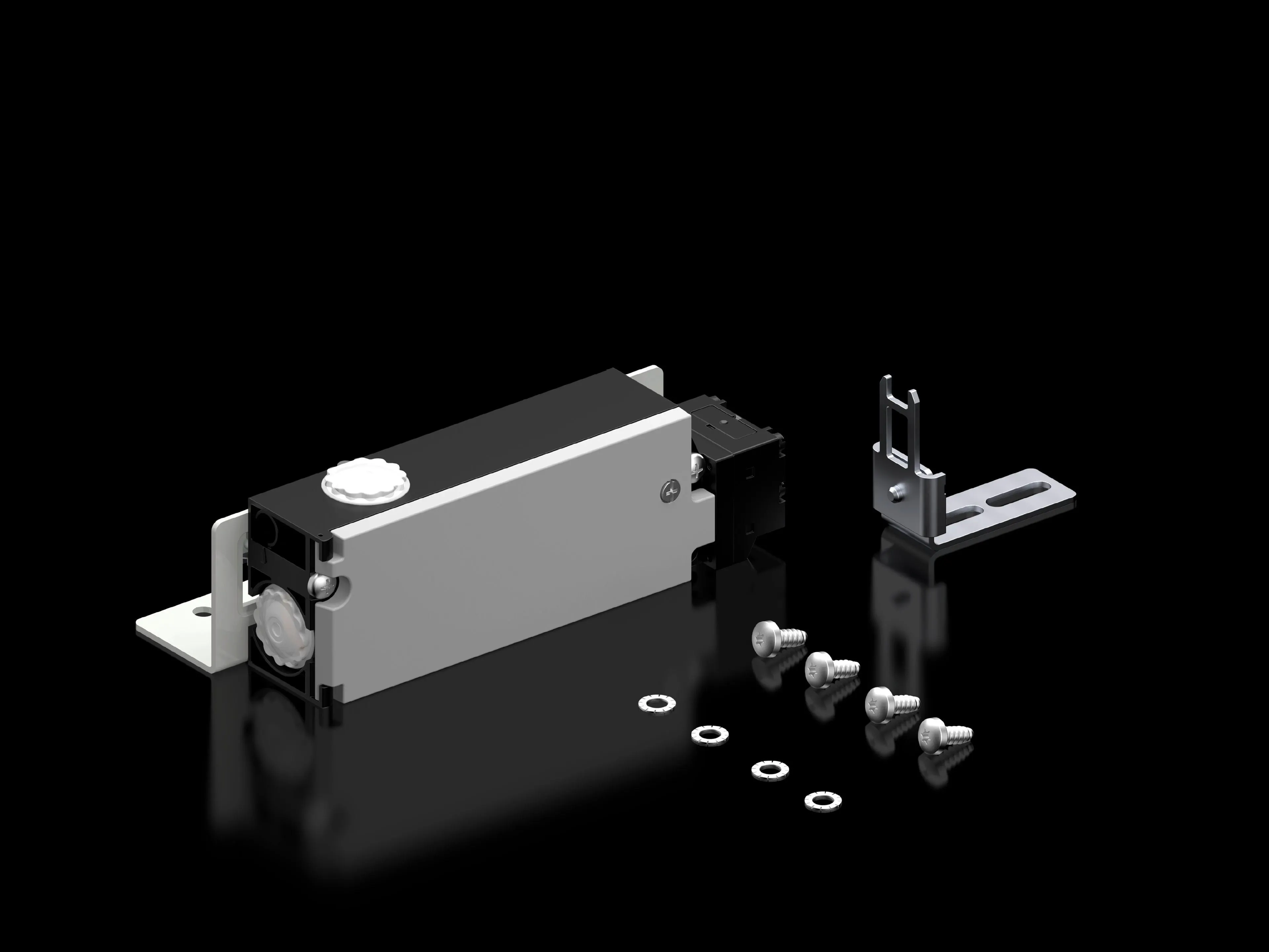

2416000 Rittal: SZ Safety lock, 230 V AC
Article number
SZ 2416.000
Product description
Fitted to doors, to protect against contact with live electrical equipment whilst the master switch is ON.
Function principle
Locks the door when the master switch is ON.
Supply includes
Lock | Actuator | Angle bracket | Assembly parts
Assembly instruction
In two-door enclosures, the door-operated switch is required for the overlapping door, to indicate "enclosure door closed"
To fit
Enclosure type: VX | Enclosure type: VX SE | Enclosure type: TS | Enclosure type: AX
Power consumption Pel
At 50 Hz: 11 VA | At 60 Hz: 11 VA
Rated operating voltage
230 V
Rated insulation voltage
400 V AC
Rated impulse withstand voltage, phase to phase
4000 V AC
Packs of
1 pc(s).
Weight/pack
0.74 kg
Customs tariff number
83015000
EAN
4028177022652
ETIM 9
EC002626
ETIM 8
EC002626
ECLASS 8.0
27189266
Product description
SZ Safety lock, 230 V AC
