2482300

Part Number: 2482300
2482300
Manufacturer
Rittal
Part number
2482300
Category
Alt Part Number
SZ 2482.300

Product Information

Extended Description

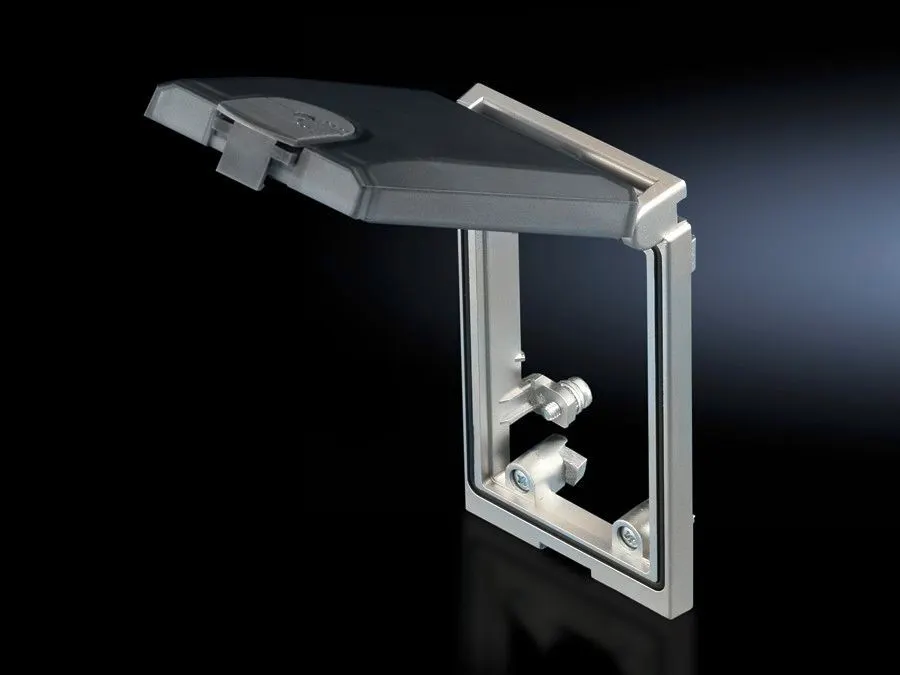

2482300 Rittal: SZ Interface flap, modular, mounting frame, single, with plastic flap, semi-transparent
Article number
SZ 2482.300
Design
Mounting frame, single, with plastic flap (semi-transparent)
Product description
For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access.
Function principle
The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°.
Material
Lock: Polycarbonate | Mounting frame, refined die-cast zinc | Plastic flap: Polycarbonate (semi-transparent)
Surface finish
Mounting frame: Matt nickel-plated
Colour
Lock: RAL 7024 | Screw terminals: yellow (RAL 1016)
Mounting cut-out
Cut-out width: 52 mm | Cut-out height: 91 mm
Installation options
In small and compact enclosures as a programming interface for controllers
Dimensions
Width: 65 mm | Height: 120 mm
IP protection category to IEC 60 529
IP 65 with sealed flap and proper assembly
Packs of
1 pc(s).
Weight/pack
0.2 kg
Customs tariff number
85369095
EAN
4028177311695
ETIM 9
EC002625
ETIM 8
EC002625
ECLASS 8.0
27189234
Product description
SZ Interface flap, modular, mounting frame, single, with plastic flap, semi-transparent
