2482320

Part Number: 2482320
2482320
Manufacturer
Rittal
Part number
2482320
Category
Alt Part Number
SZ 2482.320

Product Information

Extended Description

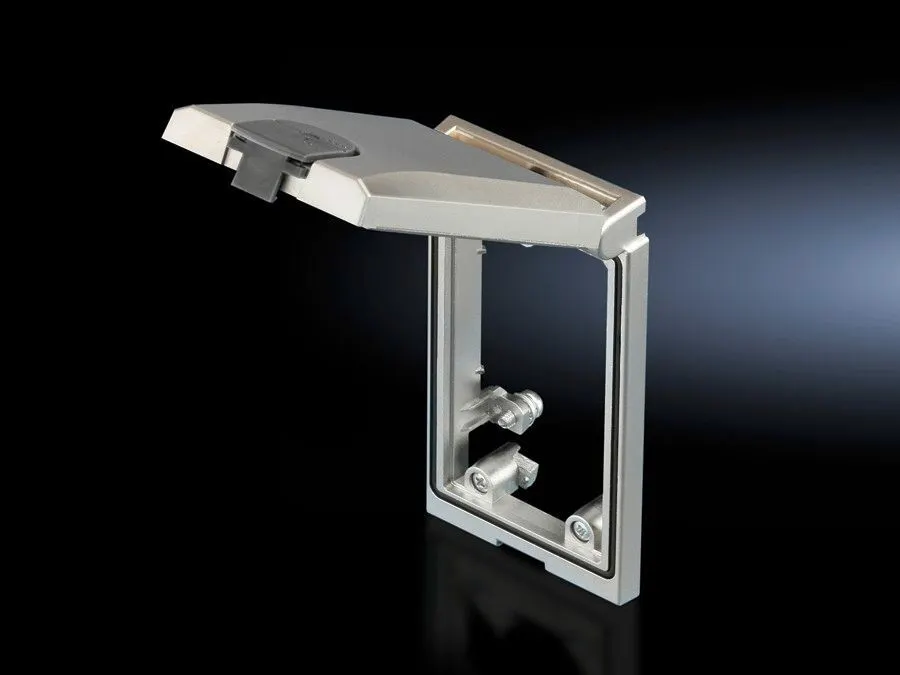

2482320 Rittal: SZ Interface flap, modular, mounting frame, single, with metal flap
Article number
SZ 2482.320
Design
Mounting frame, single, with metal flap
Product description
For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access.
Function principle
The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°.
Material
Lock: Polycarbonate | Mounting frame and metal flap: Fine die-cast zinc
Surface finish
Mounting frame and metal flap: Matt nickel-plated
Colour
Lock: RAL 7024 | Screw terminals: yellow (RAL 1016)
Mounting cut-out
Cut-out width: 52 mm | Cut-out height: 91 mm
Installation options
In small and compact enclosures as a programming interface for controllers
Dimensions
Width: 65 mm | Height: 120 mm
IP protection category to IEC 60 529
IP 65 with sealed flap and proper assembly
Packs of
1 pc(s).
Weight/pack
0.32 kg
Customs tariff number
85369095
EAN
4028177490666
ETIM 8
EC002625
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
SZ Interface flap, modular, mounting frame, single, with metal flap
