2482600
Part Number: 2482600
Manufacturer
Rittal
Part number
2482600
Category
Alt Part Number
SZ 2482.600
Product Information
Extended Description

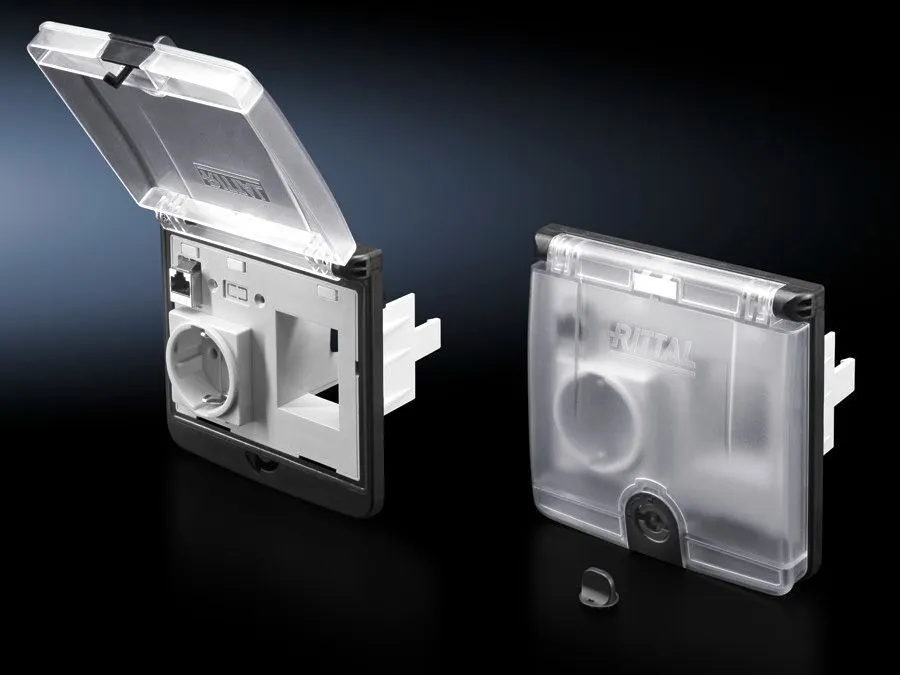

2482600 Rittal: SZ Interface flap, complete, mounting frame and interface inserts, with plastic flap, semi-transparent, RJ45, sockel modules Germany, knock-out for RDC protective switch
Article number
SZ 2482.600
Design
Spring-action terminals max. 2 x 2.5 mm, connection at rear
Product description
According to standard EN 60 204-1, all circuits with a rated current of ≤ 20 A that supply sockets in or on machine enclosures must be fused with a residual-current circuit-breaker with a rated differential current of ≤ 30 mA. Prepared for the installation of standard, 2-pole RCBO circuit-breakers.
Benefits
Protection against fault currents and overload
Applications
As programming interface for controllers
Function principle
A snap fastener ensures reliable sealing. This may be locked if required.
Material
Mounting frame: Plastic PBT (black) | Plastic flap: Polycarbonate (semi-transparent)
Supply includes
Interface flap, complete, consisting of plastic frame, socket (VDE), RJ 45 (jack/jack, Cat 5e) and cut-out for RC circuit-breaker | Knockout provided for USB A (jack/jack) | 3 mm double-bit with slot-in rotary knob
Mounting cut-out
Cut-out width: 117 mm | Cut-out height: 91 mm
Note
Interface flap may only be used with fitted RC circuit-breaker
Dimensions
Width: 131 mm | Height: 127 mm
Rated operating voltage
250 V, 1~, 50 Hz/60 Hz
Rated current 230 V, 50 Hz
10 ‐ 16 A
IP protection category to IEC 60 529
IP 65
Packs of
1 pc(s).
Weight/pack
0.58 kg
Customs tariff number
85366990
EAN
4028177803732
ETIM 9
EC002625
ETIM 8
EC002625
ECLASS 8.0
27189234
Product description
SZ Interface flap, complete, mounting frame and interface inserts, with plastic flap, semi-transparent, RJ45, sockel modules Germany, knock-out for RDC protective switch
