2500610
Part Number: 2500610
Manufacturer
Rittal
Part number
2500610
Category
Alt Part Number
SZ 2500.610
Product Information
Extended Description

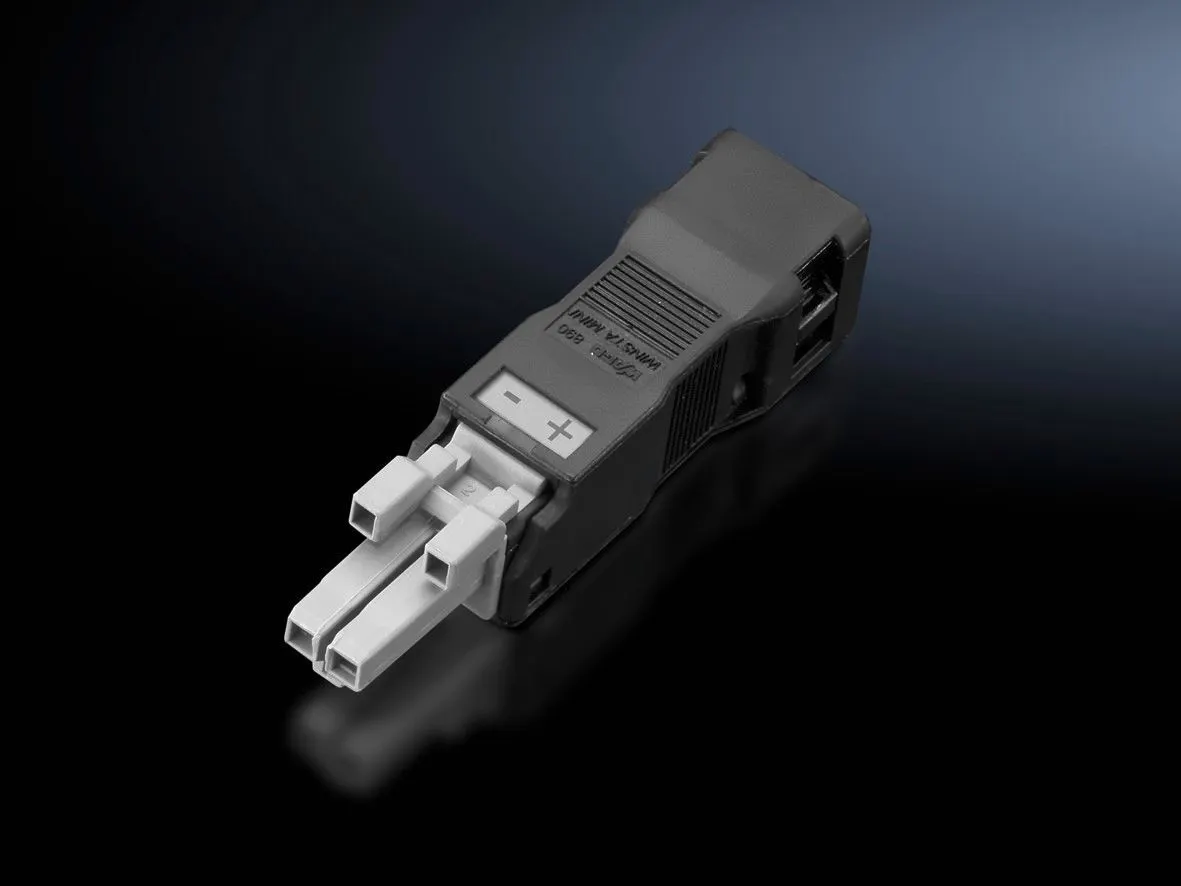

2500610 Rittal: SZ Jack, for power supply and through-wiring, 2-pole, 24 V DC, Connection accessories for self-assembly
Article number
SZ 2500.610
Design
Jack, 2-pole
Cross-section, nominal
1.5 mm²
Dimensions
Width: 15.6 mm | Height: 13.2 mm | Depth: 61.6 mm
Connection of round conductors, single-wire
0.25 ‐ 1.5 mm²
Connection of round conductors, single-wire
AWG 16 ‐ AWG 22
Connection of round conductors, multi-wire
0.25 ‐ 1 mm²
Connection of round conductors, multi-wire
AWG 18 ‐ AWG 22
Packs of
5 pc(s).
Weight/pack
0.065 kg
Customs tariff number
85369095
EAN
4028177918740
ETIM 8
EC000458
ETIM 7.0
EC000458
ECLASS 8.0
27440314
Product description
SZ Jack, for power supply and through-wiring, 2-pole, 24 V DC, Connection accessories for self-assembly
