2500711
Part Number: 2500711
Manufacturer
Rittal
Part number
2500711
Category
Alt Part Number
SZ 2500.711
Product Information
Extended Description

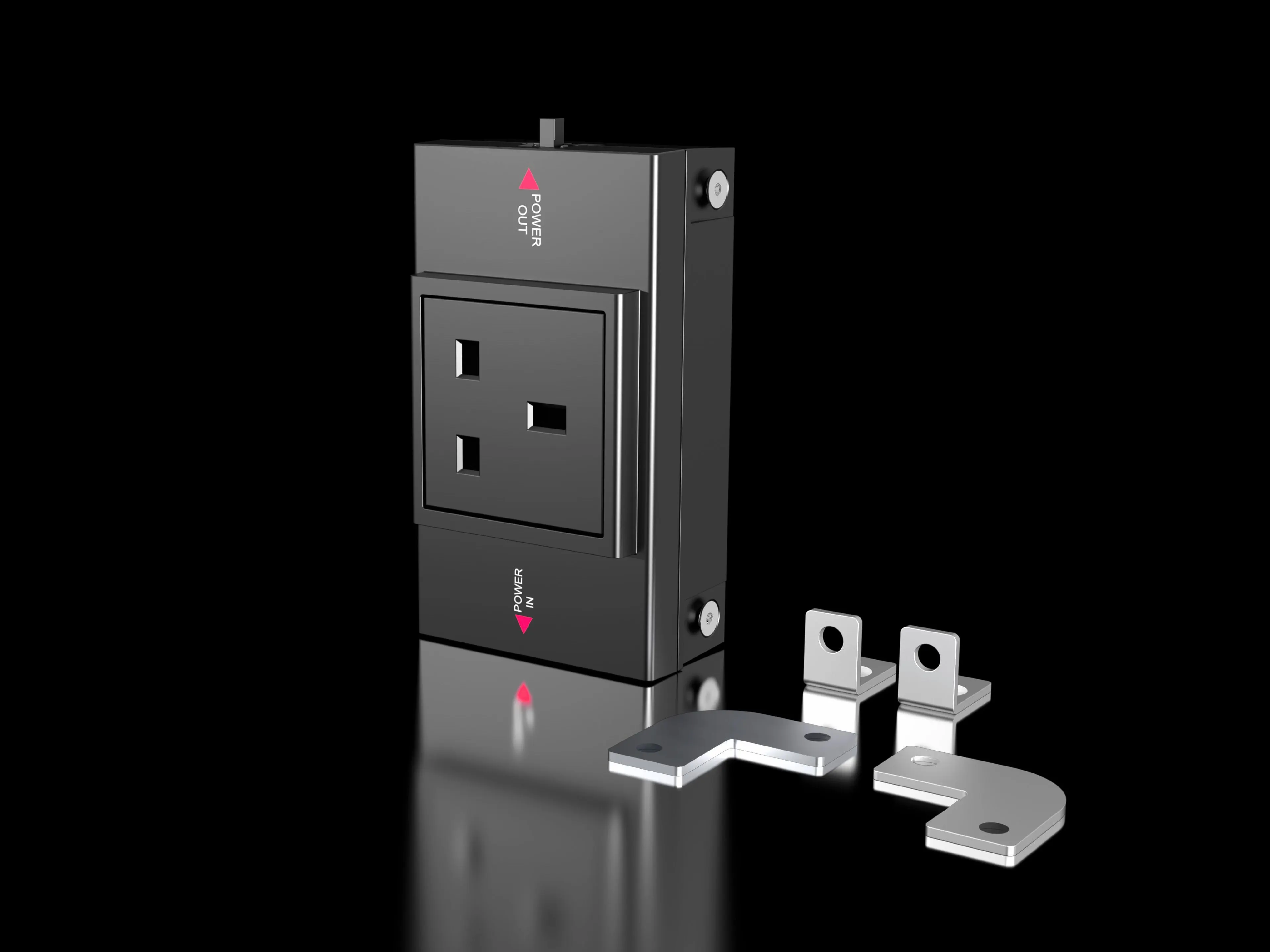

2500711 Rittal: SZ socket box for LED system light, with socket for UK,
Article number
SZ 2500.711
Product description
In combination with the LED system light, the socket box creates a flexible modular system for international use.
Benefits
Identical connection accessories as for LED system light
Material
Plastic
Colour
RAL 7016
Supply includes
Assembly parts
Connection options
Infeed, 3-pole
Protection class
II (all-insulated)
Note
Depending on the application, through-wiring or a 3-pole infeed may be required
Dimensions
Width: 163 mm | Height: 68 mm | Depth: 43.5 mm
Operating temperature range
-20 °C...55 °C
Sockets
GB (type G, BS 1363)
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Packs of
1 pc(s).
Weight/pack
0.281 kg
Customs tariff number
85366990
EAN
4028177956889
ETIM 9
EC000330
ETIM 8
EC000330
ECLASS 8.0
27142604
Product description
SZ socket box for LED system light, with socket for UK,
