2561010
Part Number: 2561010
Product Information
Extended Description

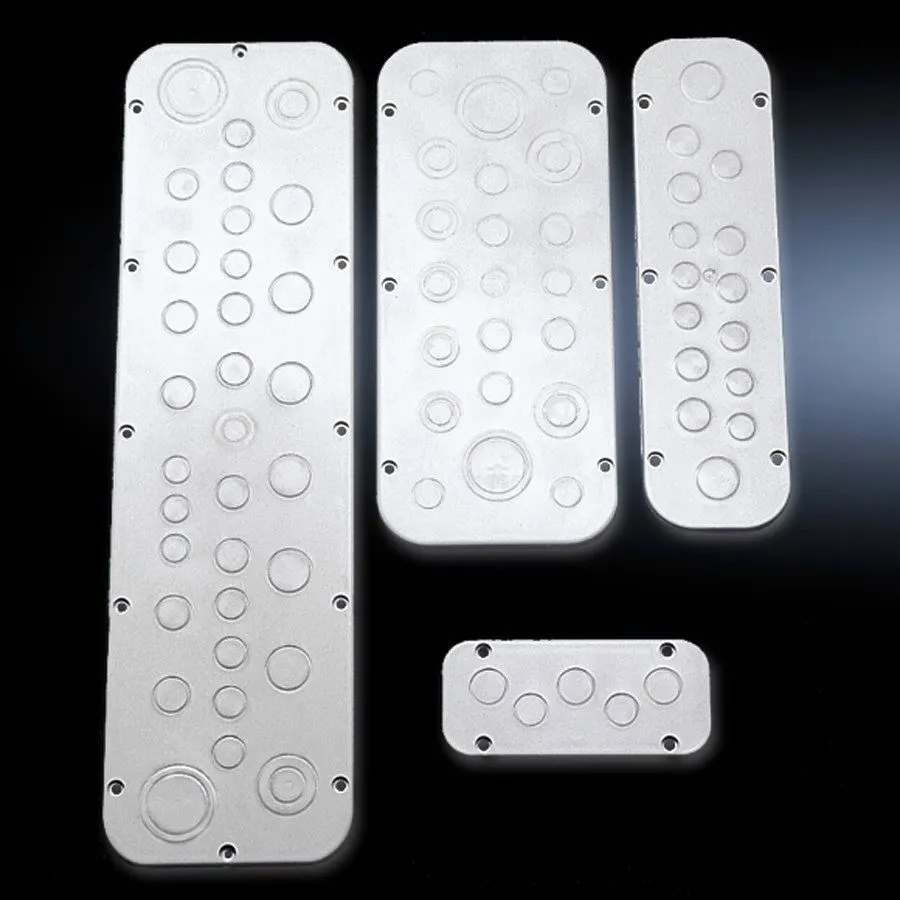

2561010 Rittal: SZ Plastic cable gland plate, with metric knock-outs, WD: 330x90 mm, size: 3
Article number
SZ 2561.010
Product description
With pre-punched holes for cable glands. Use seal for standard gland plates.
Colour
RAL 7035
Note
The allocation of gland plate sizes is indicated on the relevant enclosures
No. of metric knockouts
3 x M16 | 5 x M20 | 4 x M25 | 2 x M32 | 2 x M40
Dimensions
Width: 330 mm | Depth: 90 mm
To fit
Enclosure type: AE
Gland plate
Size: 3
Operating temperature range
-40 °C...70 °C
Protection category to IEC 60 529
IP 55 if installed correctly
Number knockouts
3 | 5 | 4 | 2 | 2
Metric diameter
M16
Packs of
10 pc(s).
Weight/pack
1.4 kg
Customs tariff number
39269097
EAN
4028177550261
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
SZ Plastic cable gland plate, with metric knock-outs, WD: 330x90 mm, size: 3
