2561500
Part Number: 2561500
Product Information
Extended Description

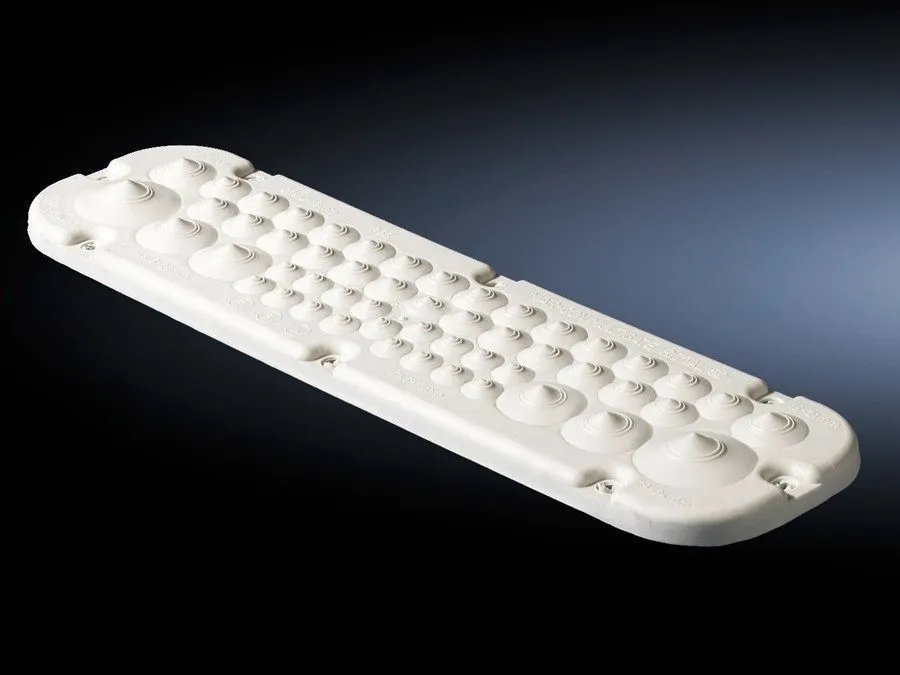

2561500 Rittal: SZ Plastic cable gland plate, with membranes, WD: 330x90 mm, size: 3
Article number
SZ 2561.500
Product description
Simply pierce the plastic with a sharp object, and pull through the cable.
Material
Plastic to UL 94-V0 | Halogen free
Colour
Similar to RAL 7035
Note
The allocation of gland plate sizes is indicated on the relevant enclosures
Dimensions
Width: 330 mm | Depth: 90 mm
To fit
Enclosure type: AE
Gland plate
Size: 3
Protection category to IEC 60 529
IP 65
No. of cable entries and Ø (mm) min.-max.
17 x 6-11
Packs of
1 pc(s).
Weight/pack
0.38 kg
Customs tariff number
39269097
EAN
4028177325593
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
SZ Plastic cable gland plate, with membranes, WD: 330x90 mm, size: 3
