2563010
Part Number: 2563010
Product Information
Extended Description

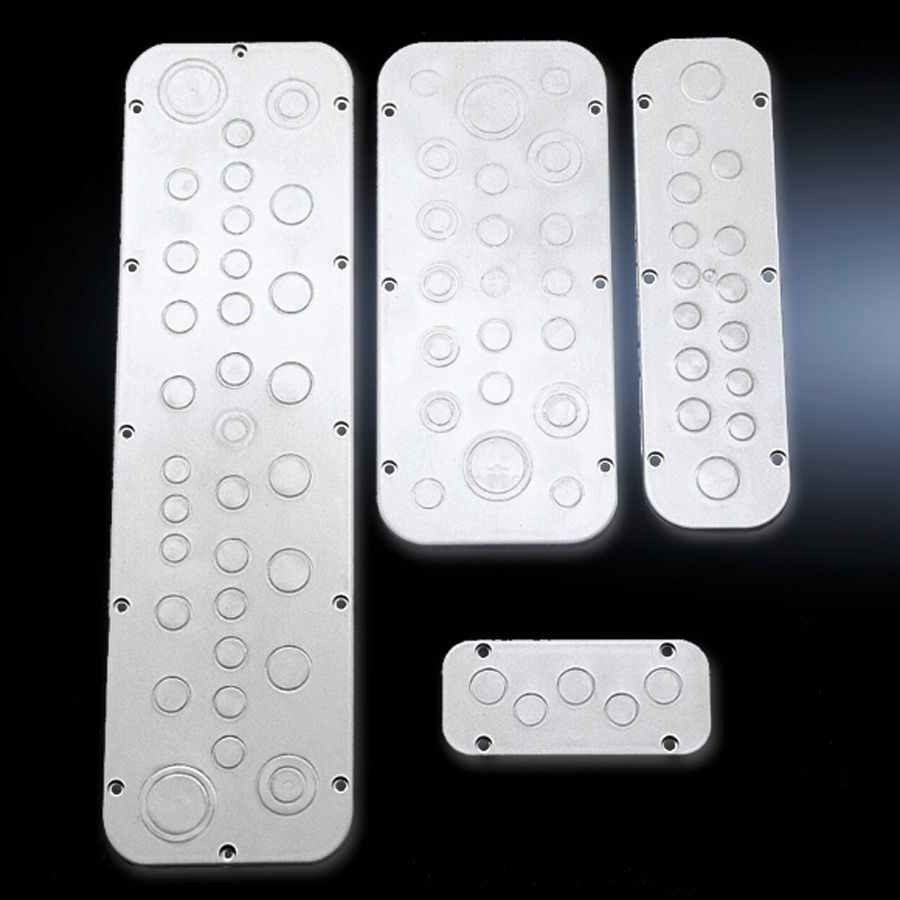

2563010 Rittal: SZ Plastic cable gland plate, with metric knock-outs, WD: 530x149 mm, size: 5
Article number
SZ 2563.010
Product description
With pre-punched holes for cable glands. Use seal for standard gland plates.
Colour
RAL 7035
Note
The allocation of gland plate sizes is indicated on the relevant enclosures
No. of metric knockouts
2 x M12 | 4 x M16 | 8 x M20 | 13 x M25 | 6 x M32 | 4 x M40 | 2 x M50
Dimensions
Width:Â 530 mm | Depth:Â 149 mm
To fit
Enclosure type:Â AE
Gland plate
Size:Â 5
Operating temperature range
-40 °C...70 °C
Protection category to IEC 60 529
IP 55 if installed correctly
Number knockouts
2 | 4 | 8 | 13 | 6 | 4 | 2
Metric diameter
M12
Packs of
5 pc(s).
Weight/pack
1.95 kg
Customs tariff number
39269097
EAN
4028177550285
ETIM 9
EC000211
ETIM 8
EC000211
ECLASS 8.0
27142421
Product description
SZ Plastic cable gland plate, with metric knock-outs, WD: 530x149 mm, size: 5
